ANB306
ANB
Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this bass.
5pc Maple/Purpleheart neck
The 5pc Maple/Purpleheart neck with neck-through construction allows for the maximization of vibration through the entire bass, promoting rich sustain.
Quilted Maple body top and Ash wing back
The 5pc Maple/Purpleheart neck with neck-through construction allows for the maximization of vibration through the entire bass, promoting rich sustain.
Bartolini® xxM56C pickups & NTMB+F ANB Custom Electronics
The combination of the Bartolini® xxM56C pickups and the NTMB+F ANB Custom Electronics 3-band eq with a 3-way Mid frequency switch creates an immense palette of versatile sounds.
Hipshot® A Style bridge
Hipshot® A Style bridge has 18mm string spacing, slightly wider than the standard 16.5mm SR-5 string spacing. The extra space offers players plenty of freedom for techniques like slap, without compromising player comfort.
Neck Dimensions
Scale : 864mm//34"
Width at NUT (a): 55mm
Width at 24F (b): 91mm
Thickness at 1F (c): 19.5mm
Thickness at 12F (d): 21.5mm
Radius : 400mmR

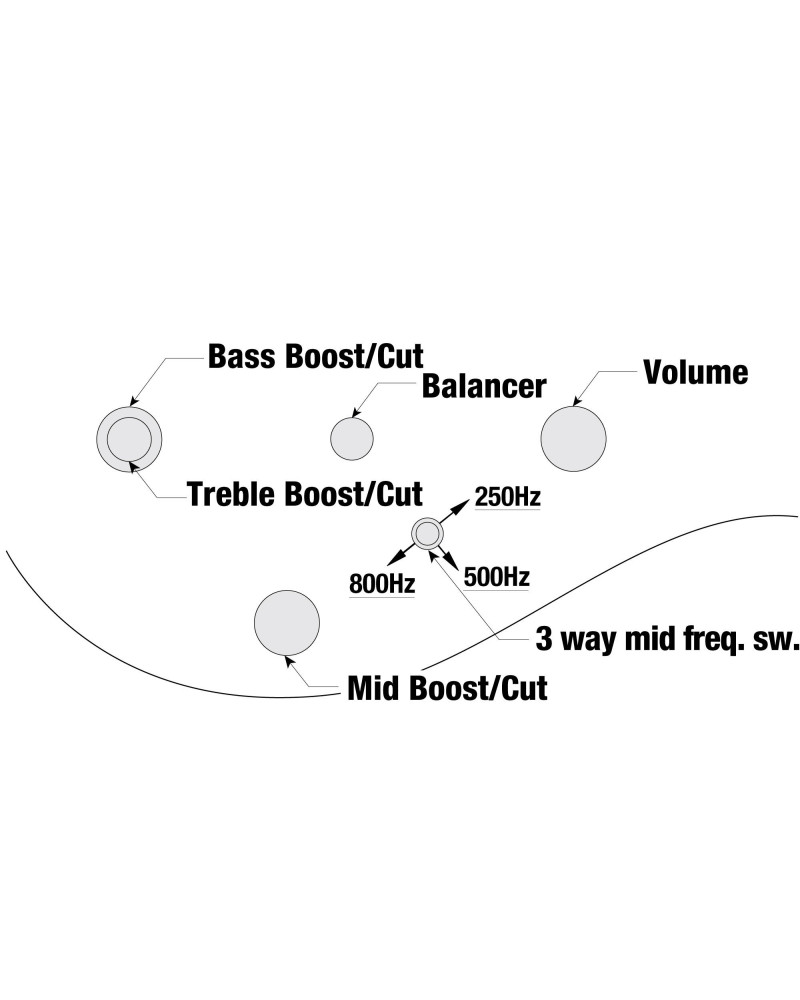

Controls
With the bass held in the playing position, the knob closest to the lower edge of the body is the mid boost/cut knob.
There are three additional knobs above the mid control, closer to the bridge.
The knob closest to the end of the body is stacked.
The upper portion controls the treble boost/cut, and the lower portion controls the bass boost/cut.
Directionally, from this stacked knob towards the neck, the controls are pickup balance and volume.
Directly in between the mid boost/cut knob and the volume knob is a 3-way mid frequency switch.

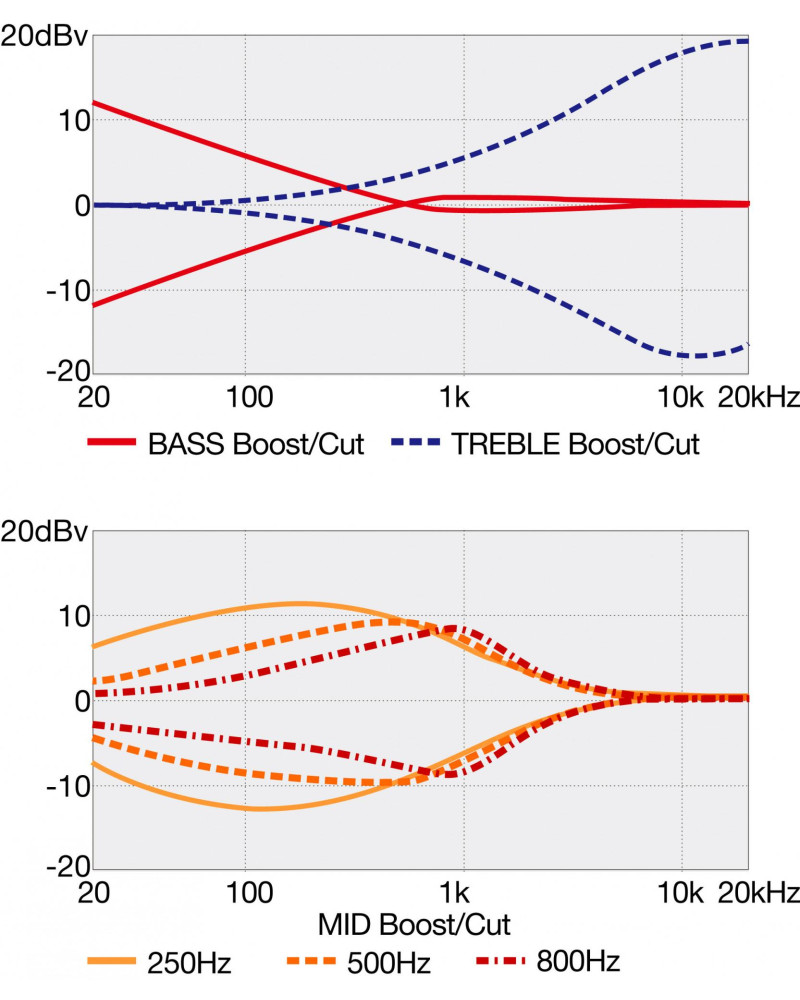

When the switch is in neck position, mid boost peak is at 250Hz.
When the switch is in center position, mid boost peak is at 500Hz.
When the switch is in bridge position, mid boost peak is at 800Hz.
