SDGB1
SDGB
9pc Maple/Bubinga/Panga Panga neck with Graphite reinforcement rods
The 9-piece Maple/Bubinga/Panga Panga neck provides superior note attack, tight lows and increased sustain. The Graphite reinforcement rods provides massive sustain and excellent stability.

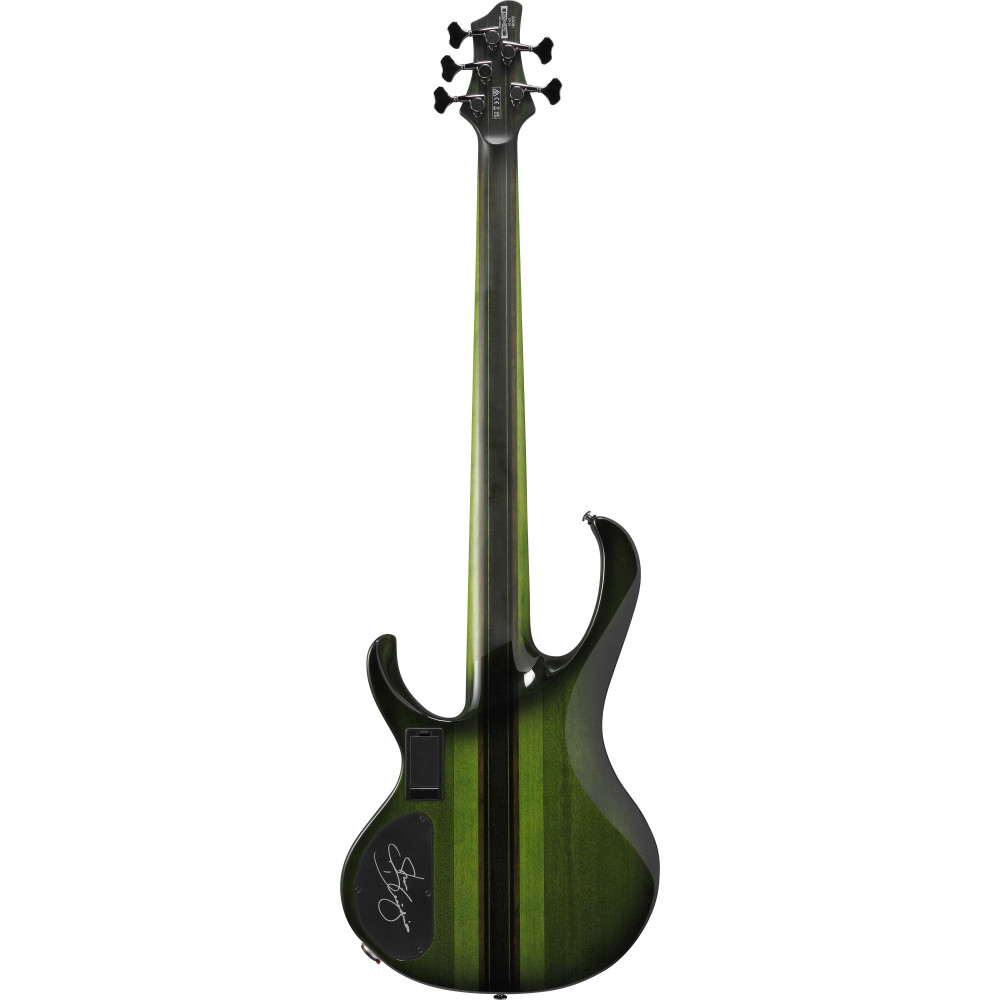

Neck-through construction
The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.
Ebonol fretboard
Ebonol is a synthetic material which is made from layers of black paper and phenolic resin. An Ebonol fretboard provides tight and bright sound.

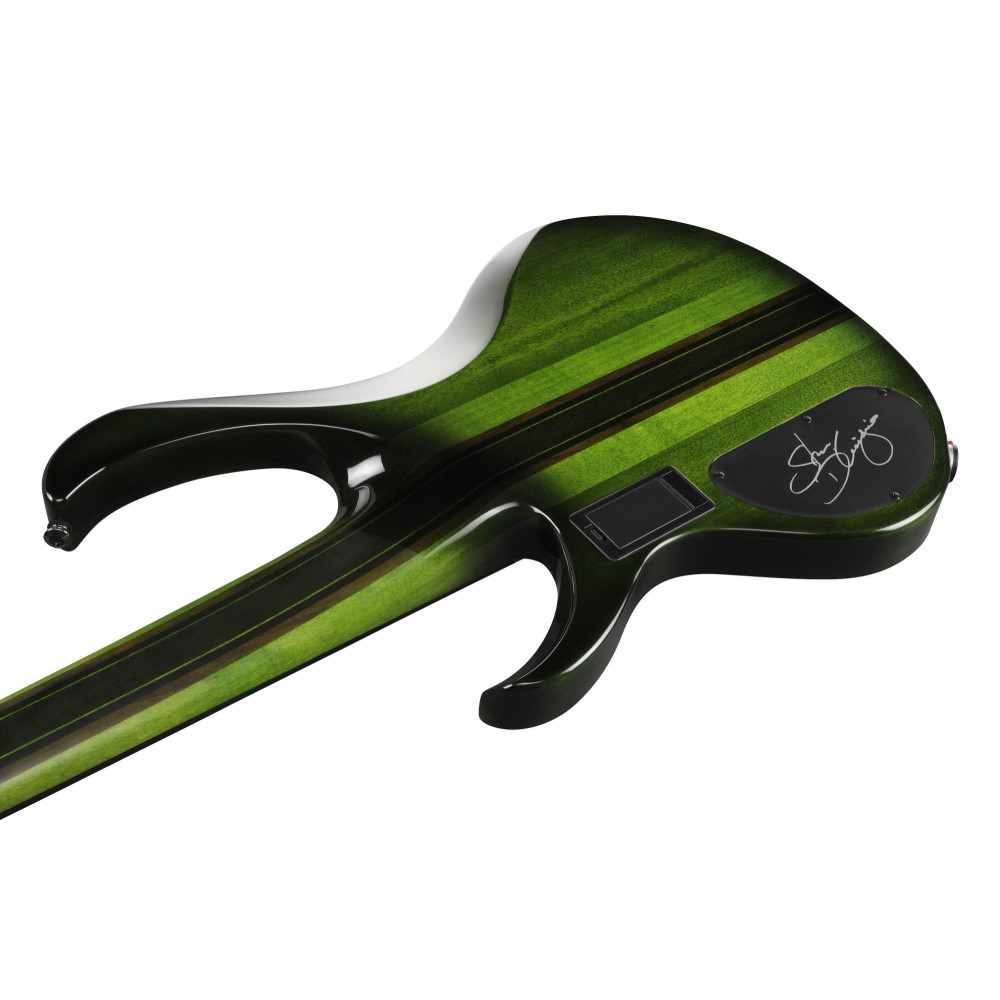

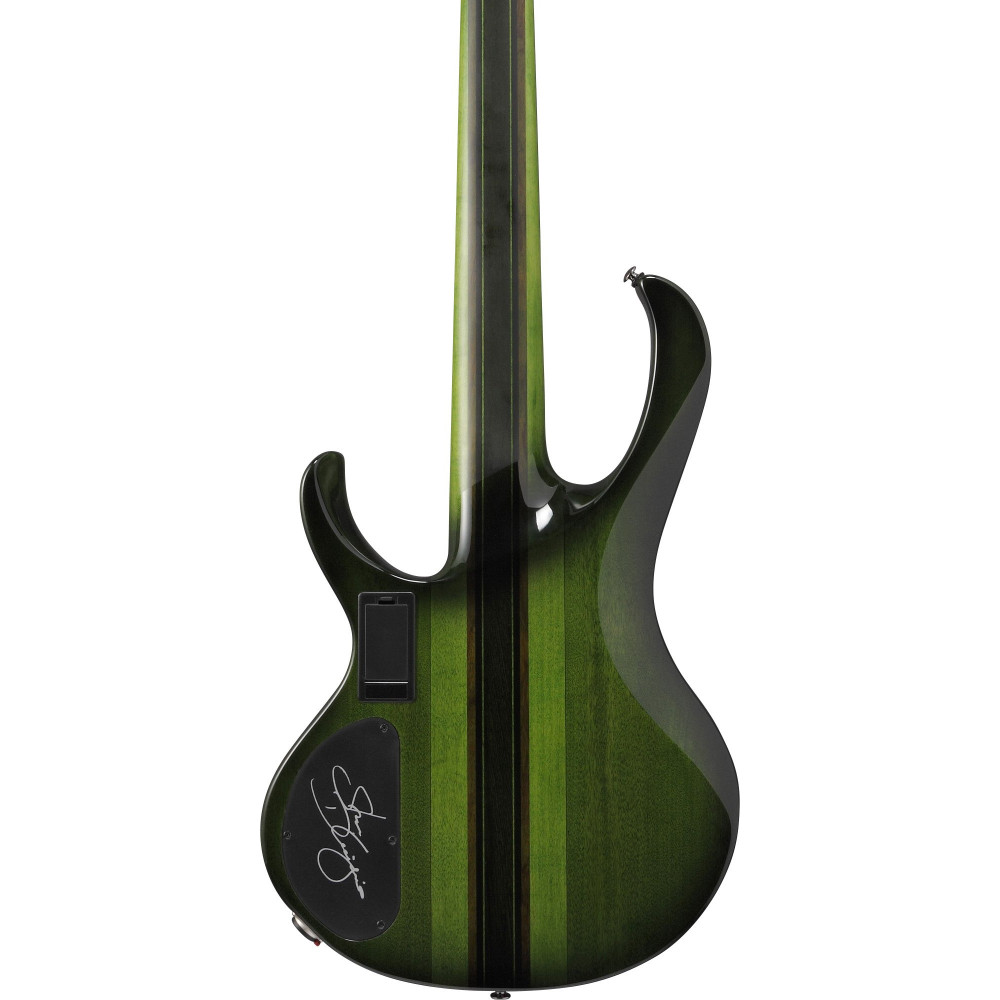

Flamed Maple top / Ash / Okoume wing body
The Flamed Maple top displays a beautiful wood grain and the Ash/Okoume wing body delivers a pleasant brightness and rich sustain.
Nordstrand™ Big Single pickups
Nordstrand™ "Big Single" cram a meaty single coil into a soapbar-style pickup, producing a full-bodied, powerful, aggressive tonal texture, while still retaining the clarity that's characteristic of single coil pickups.

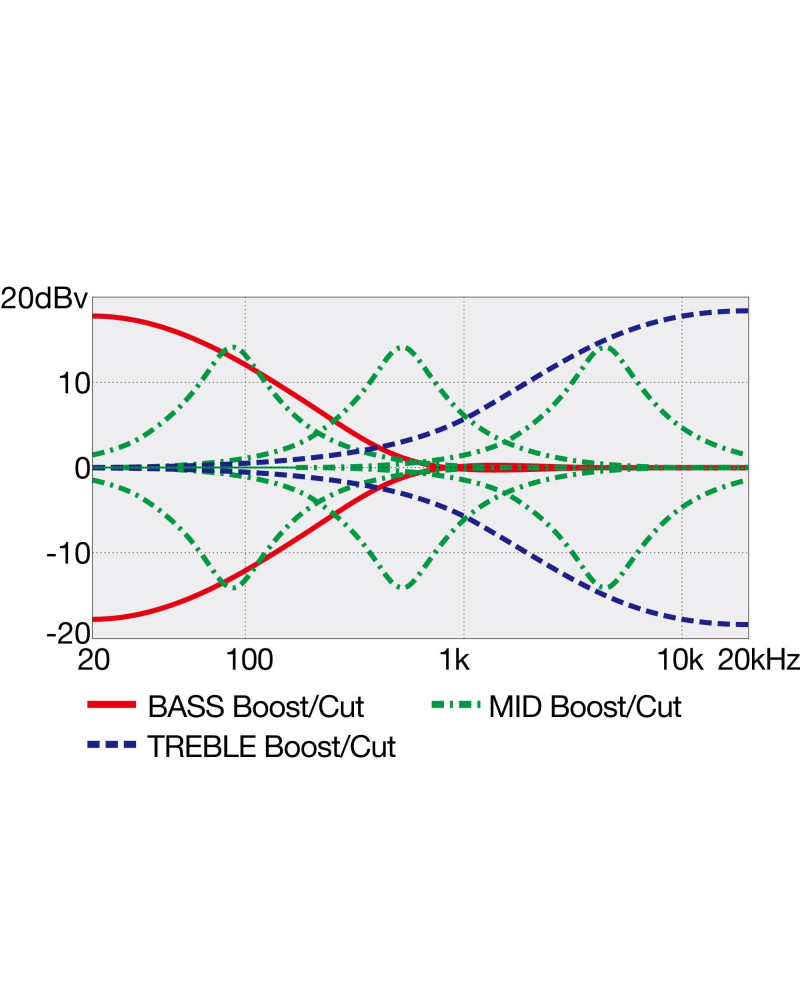

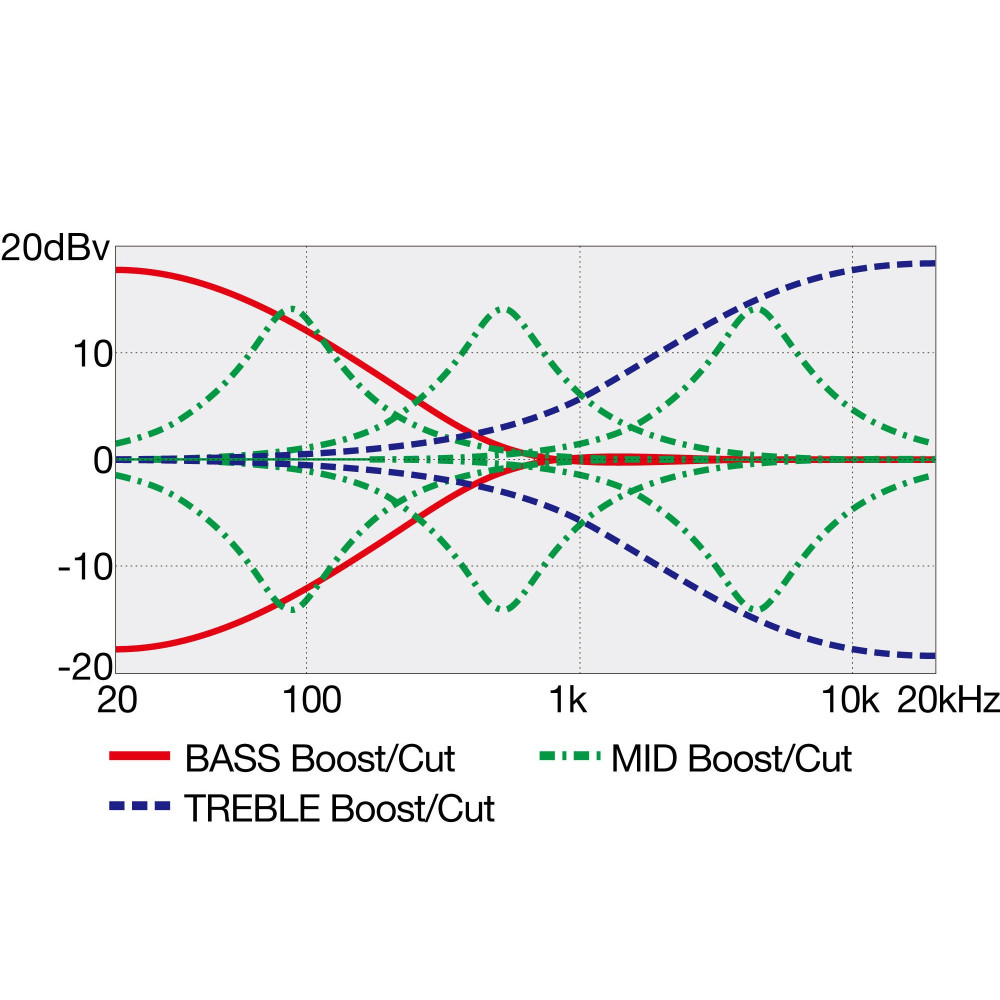

Vari-mid 3-band EQ
The Vari-mid 3-band EQ features a variable mid-frequency control which allows you to dial in an incredibly wide range of sounds.

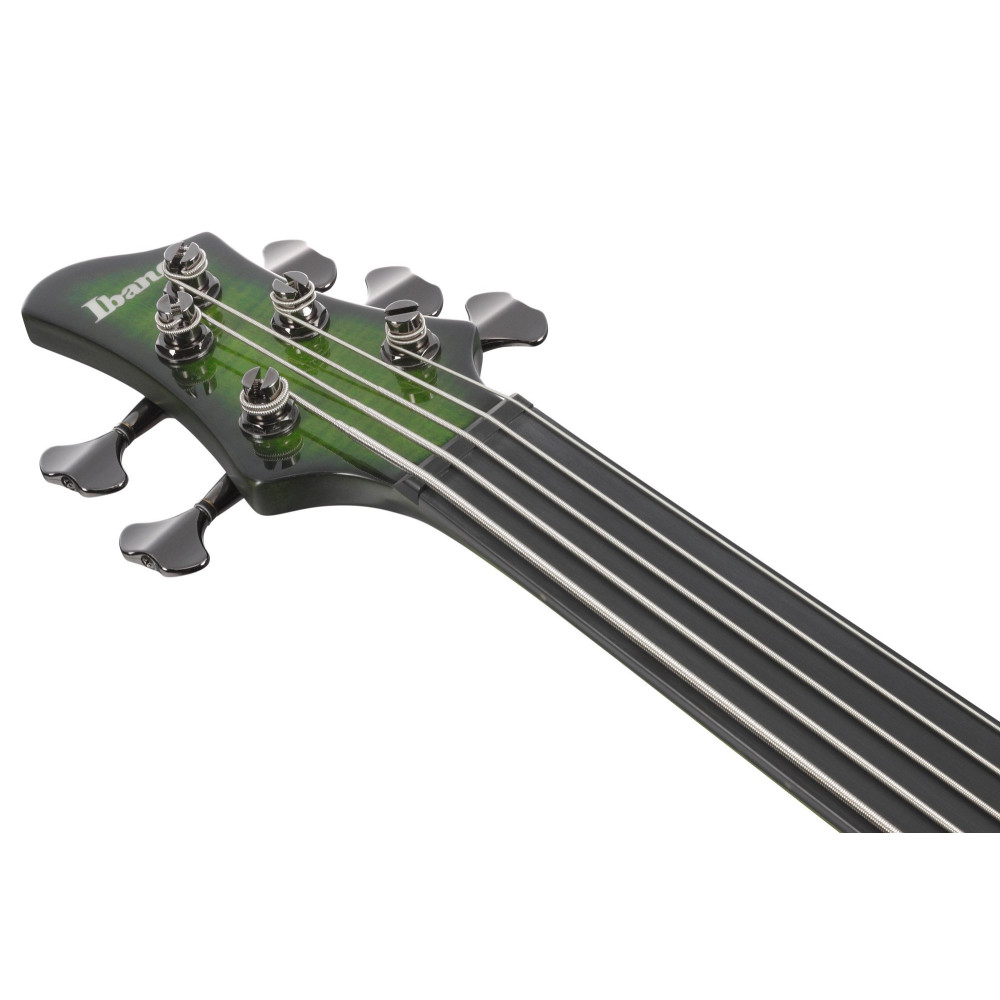

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
MR5 bridge
The Mono-Rail V is the ultimate bridge for bass string isolation. Each bridge is independently and securely locked down to the body for maximum vibration transfer without interference.
EQ bypass switch (passive tone control on treble pot)
The EQ bypass control offers precision tonal adjustments, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone control knob becomes the global tone control for the passive circuit.
Neck Dimensions
Scale : 889mm//35"
Width at NUT (a): 47mm
Width 1.85 (b): 76mm
Thickness at 1F (c): 20mm
Thickness at 12F (d): 22mm
Radius : 400mmR
Controls
With the bass held in the playing position, there are three knobs along the lower edge of the body. From the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. The mid control is a concentric knob with the mid frequency control on the bottom and mid boost/cut control on the top. Above these are two larger knobs closer to the bridge. The two knobs closest to the bridge are the volume and balance knobs. When the switch is in bridge position, EQ is on.
When EQ is off, the treble knob works as a passive tone control when in passive mode.
