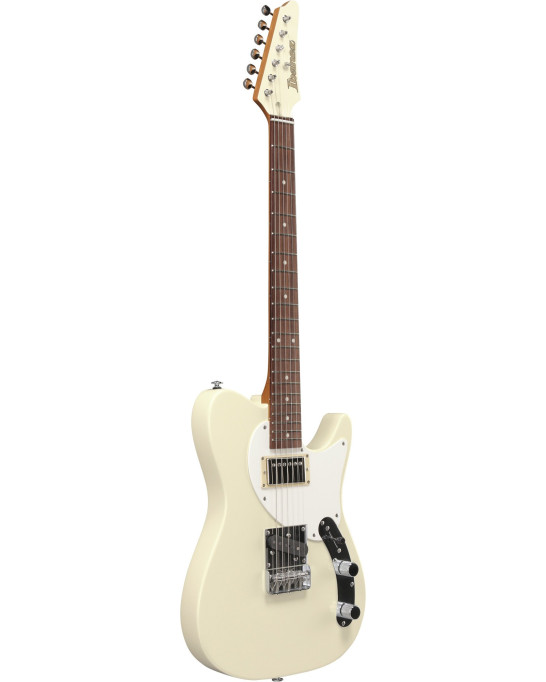

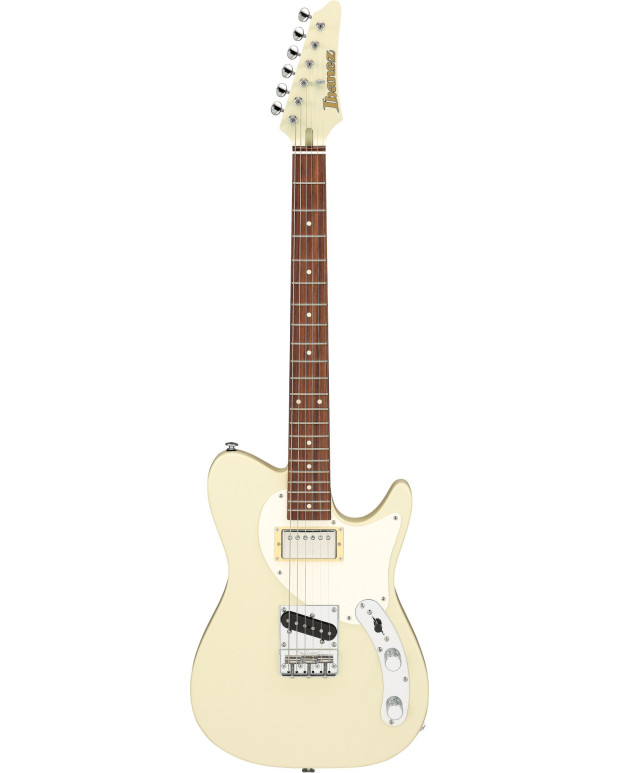

FLATV2
Josh Smith
Made in Japan

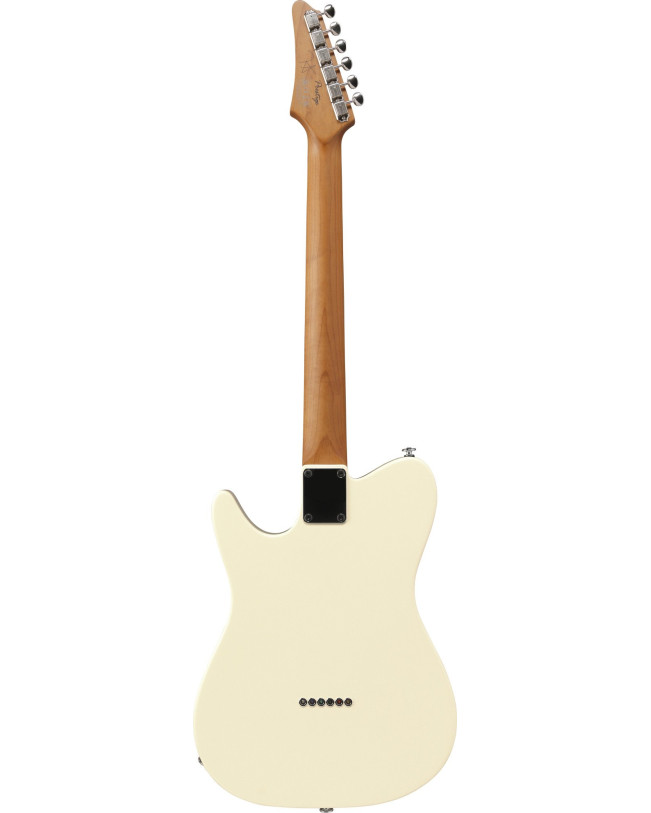

FLATV S-TECH WOOD Roasted Maple neck
The FLATV neck features a ’Soft V’ neck grip shape that blends the charm of a classic neck shape with a modern feel. This enables the neck to feel both substantial and comfortable to the player. The S-TECH Roasted Maple neck is constructed with 1 piece, and is the perfect combination of form and function.
Rosewood fretboard w/ Ivory dot
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Medium frets with Prestige fret edge treatment
Medium sized frets enhance the accuracy of your notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.

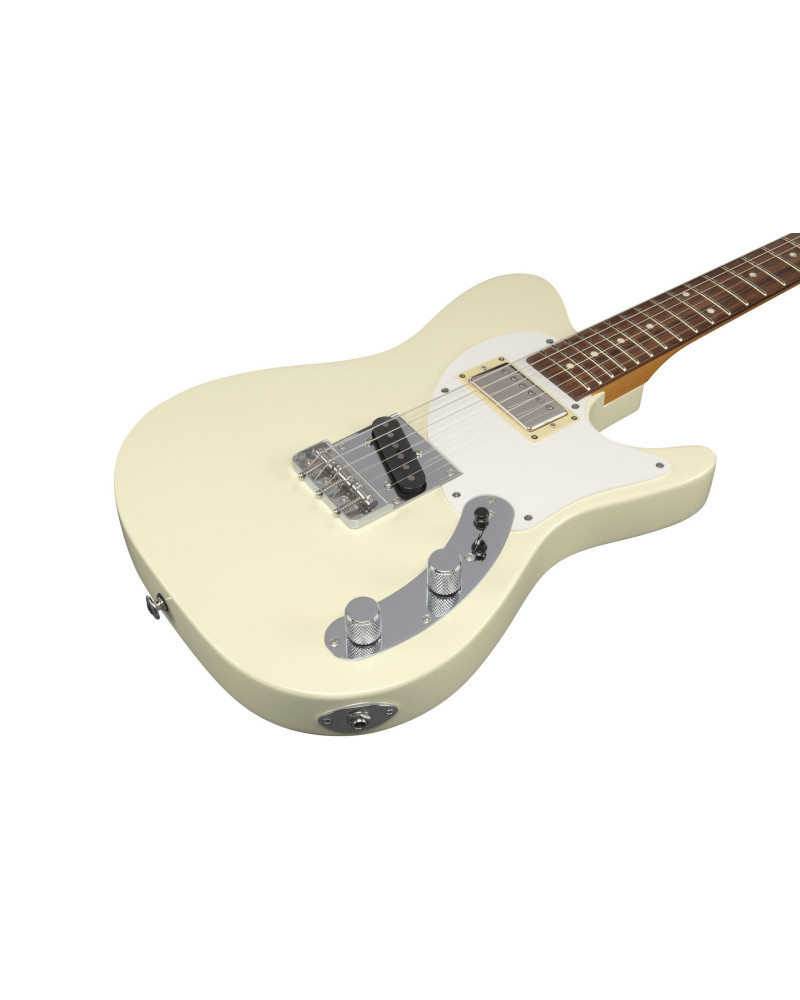

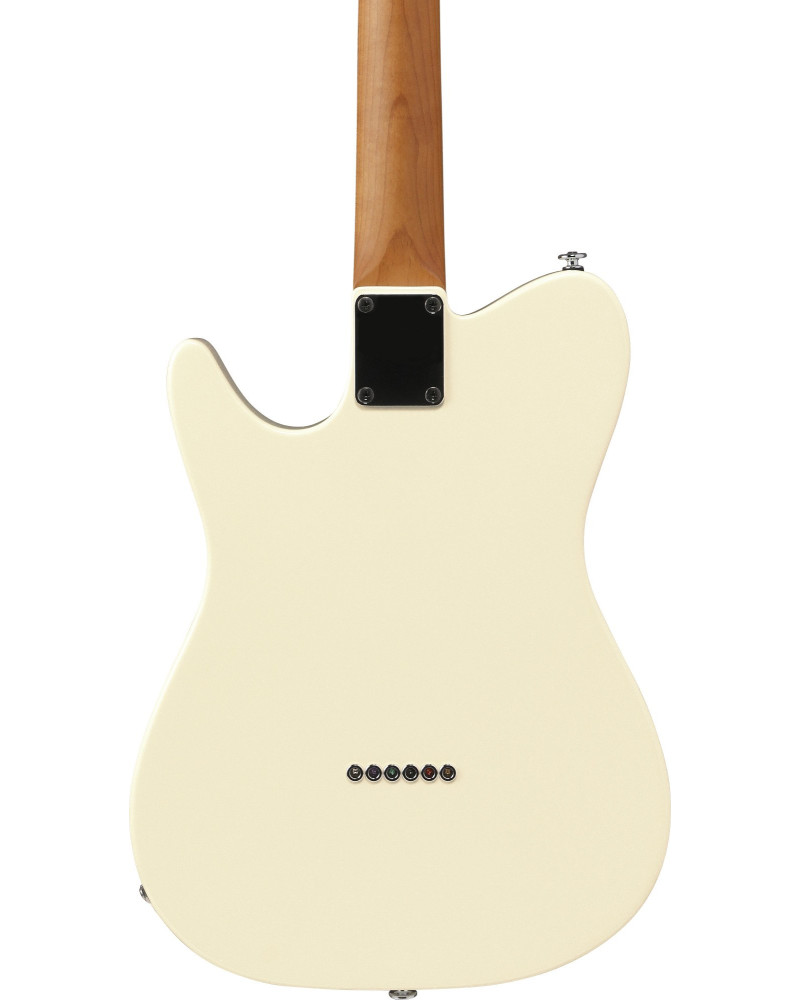

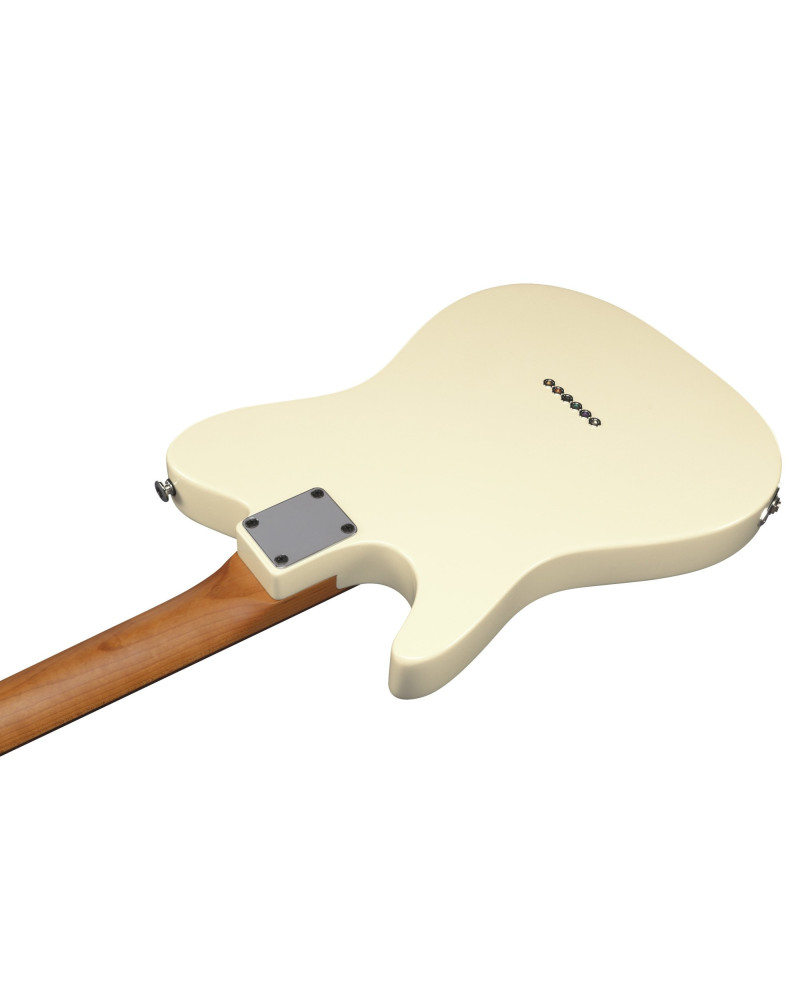

Alder body
The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

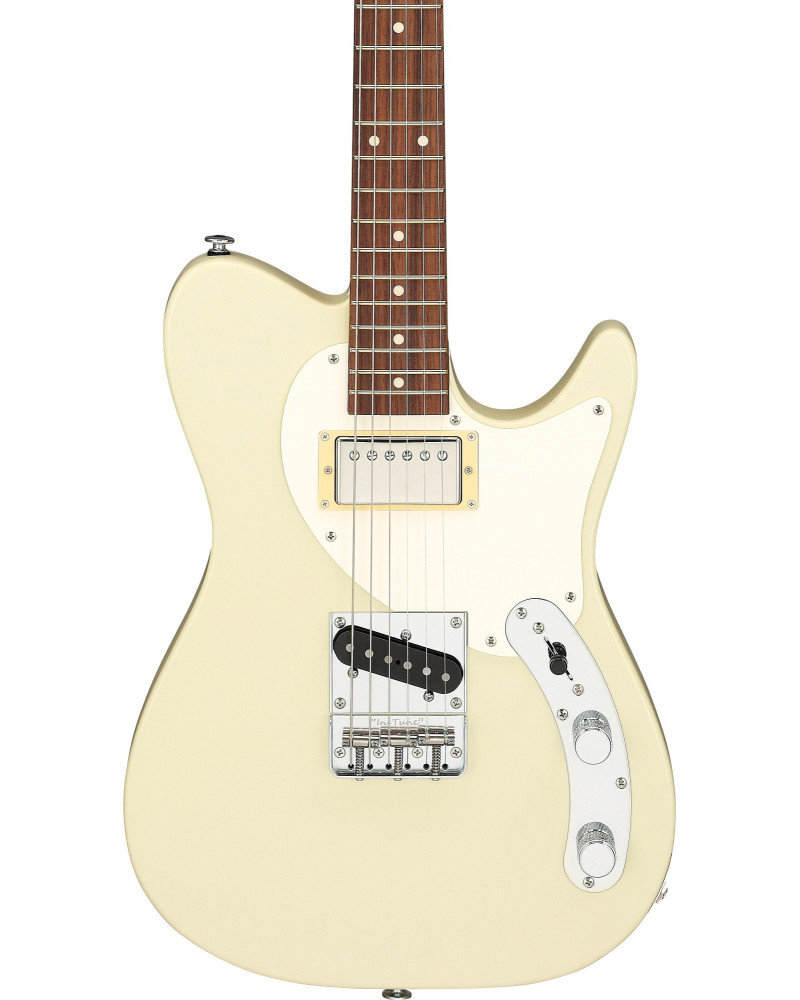

Seymour Duncan® FLAT5™ H-S pickups
Josh's signature pickup set from Seymour Duncan® features a vintage voiced neck humbucker pickup with a mounting ring that adds to the visual aesthetic of the ‘hot-rod' nature of this guitar, paired with a bridge pickup that is constructed with a mix of different types of Alnico magnets to best match the tone that Josh has relied on for years, and is able to capture guitar sounds that are both bright and fat. This pairing of the distinctly different pickups offers a unique tonal option in the middle position.

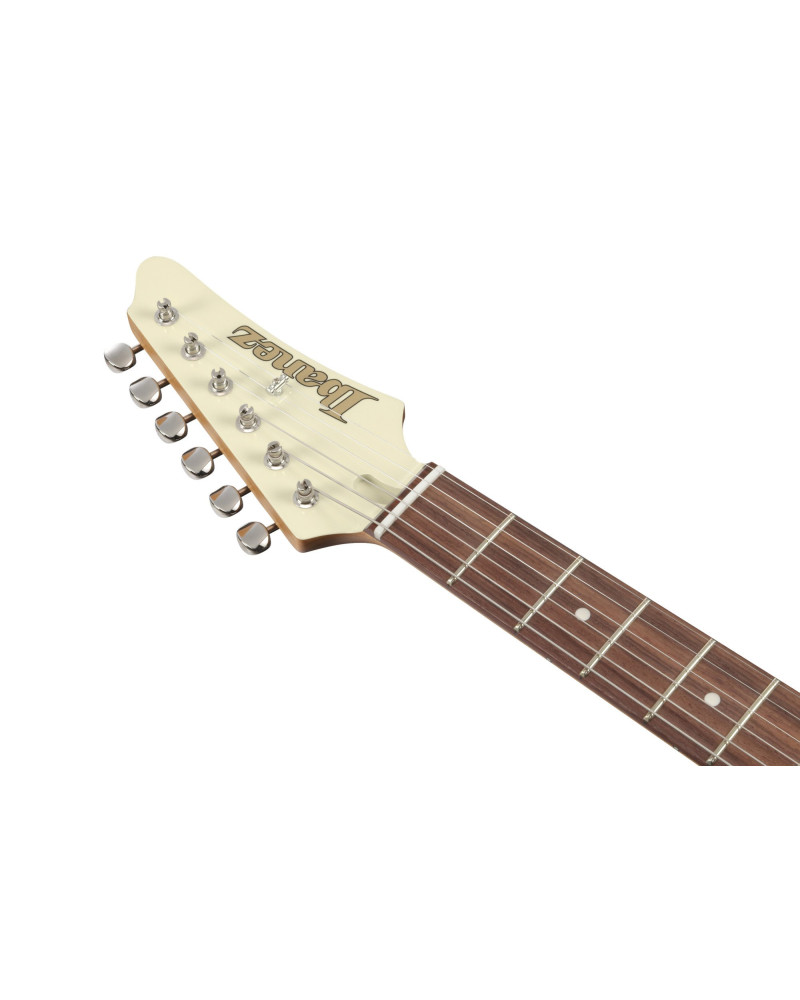

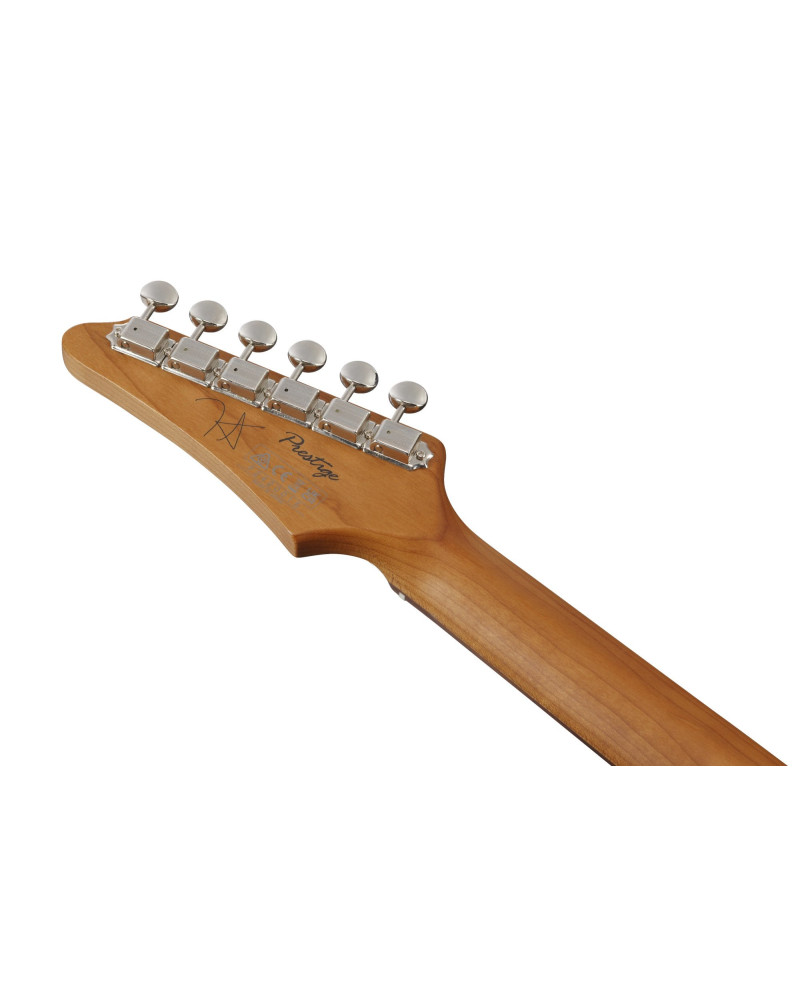

Gotoh® machine heads
Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.
Gotoh® F1803 bridge
The Gotoh® F1803 bridge improves sustain and tuning stability.
Luminlay side dots
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Neck Dimensions
Scale : 648mm//25.5"
Width at NUT (a): 42mm
Width at 21F (b): 56mm
Thickness at 1F (c): 22mm
Thickness at 12F (d): 24.5mm
Radius : 250mmR

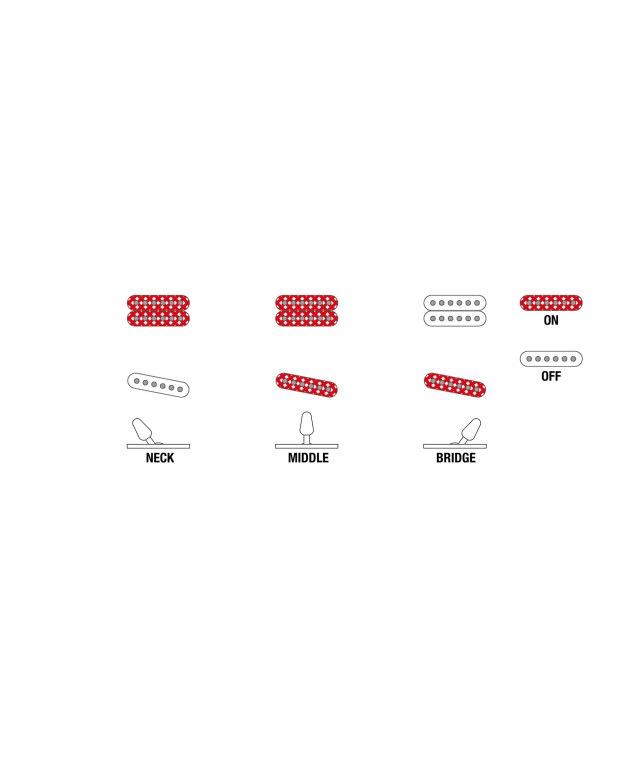

Switching System
When the pickup selector switch is in the neck position, the neck pickup is selected.
When the switch is in the center position, both the neck and bridge pickups are selected.
When the switch is in the bridge position, the bridge pickup is selected.

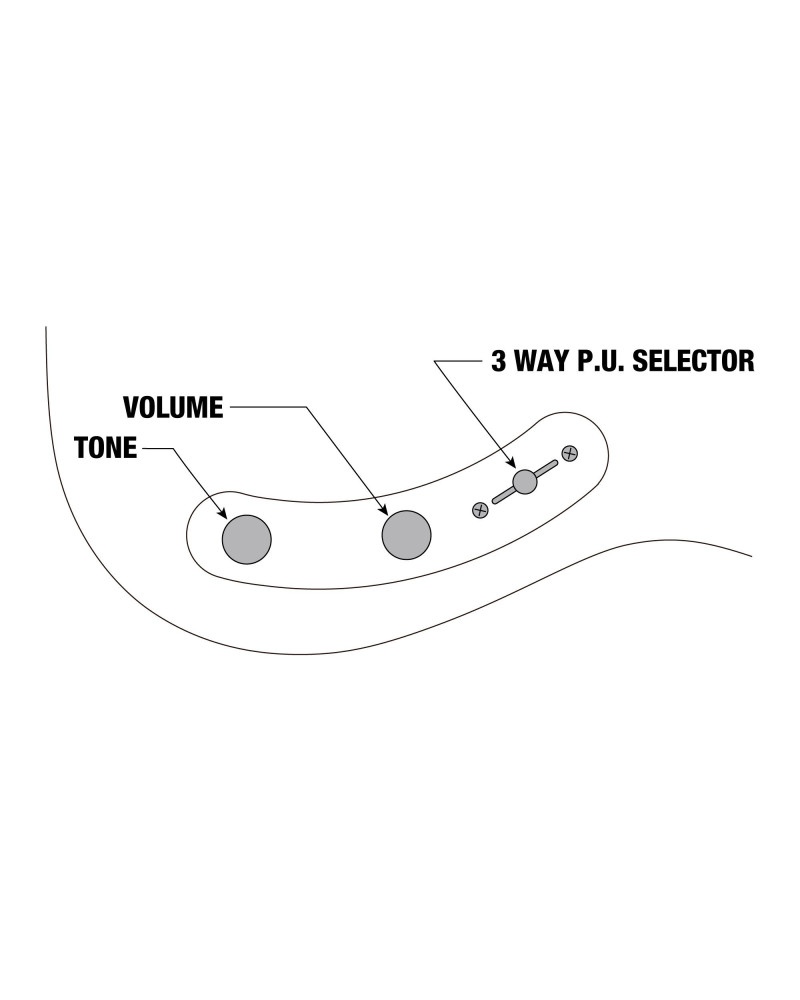

Controls
With the guitar held in the playing position, there is a three-way selector switch near to the knee cutout on the lower part of the guitar.
The volume knob and tone knob are situated closer to end of the body.
