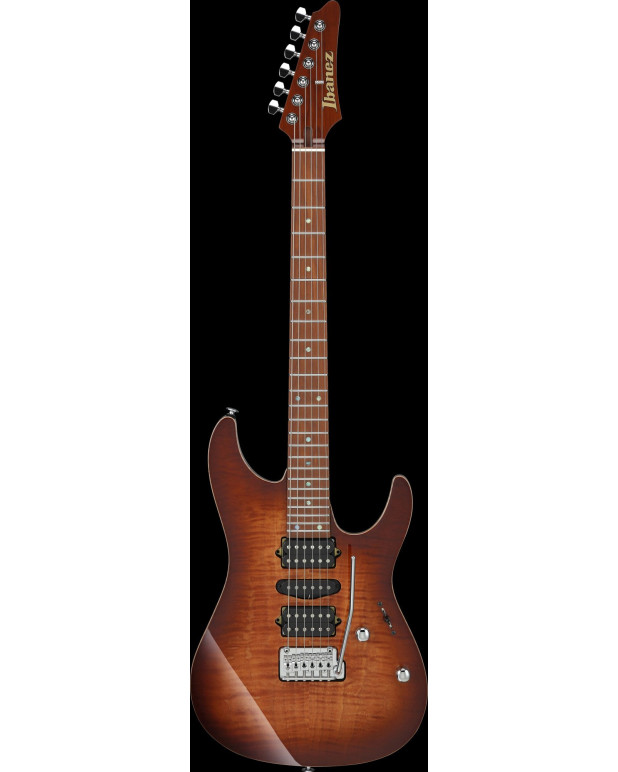

AZ2407F
AZ Prestige
Made in Japan

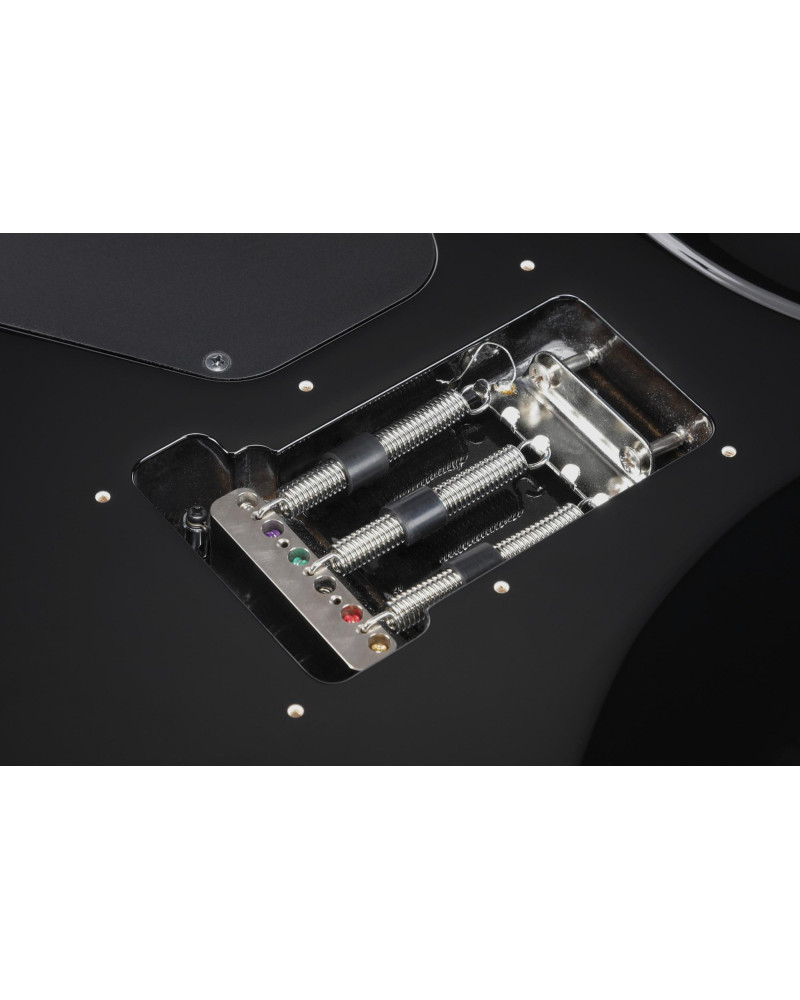

Gotoh® T1502S tremolo
The T1502S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

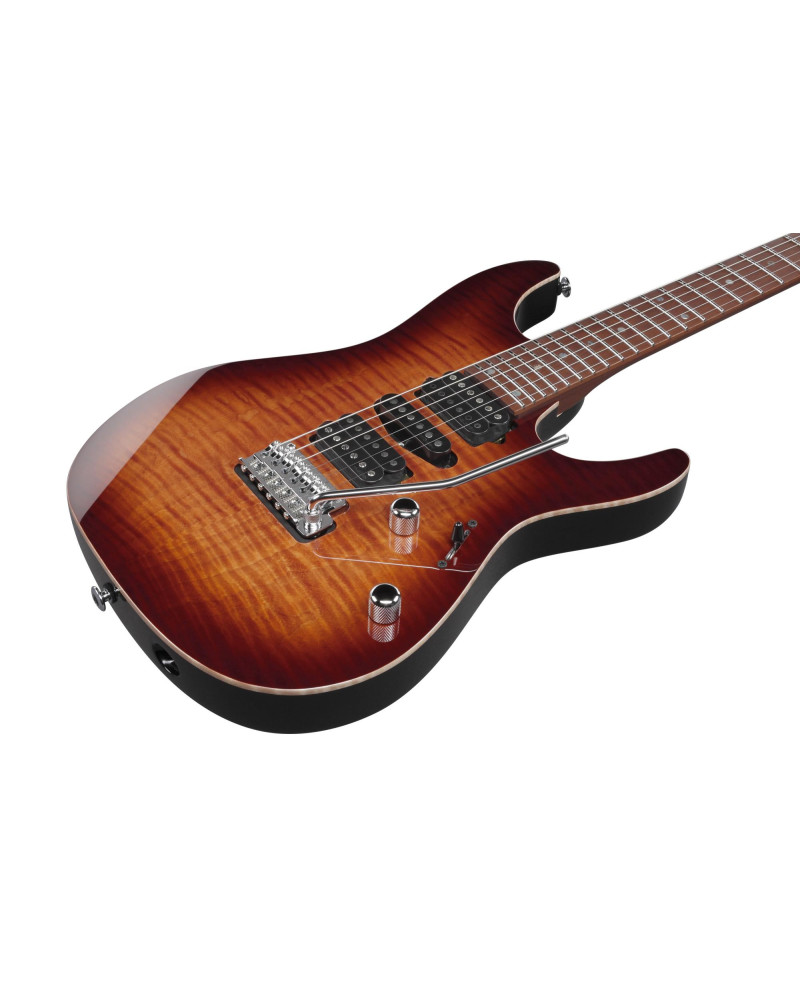

Flamed Maple (4mm) top / Basswood body
The Flamed Maple top(4mm) flaunts a beautiful wood grain and the Basswood body delivers a natural and flat tone.

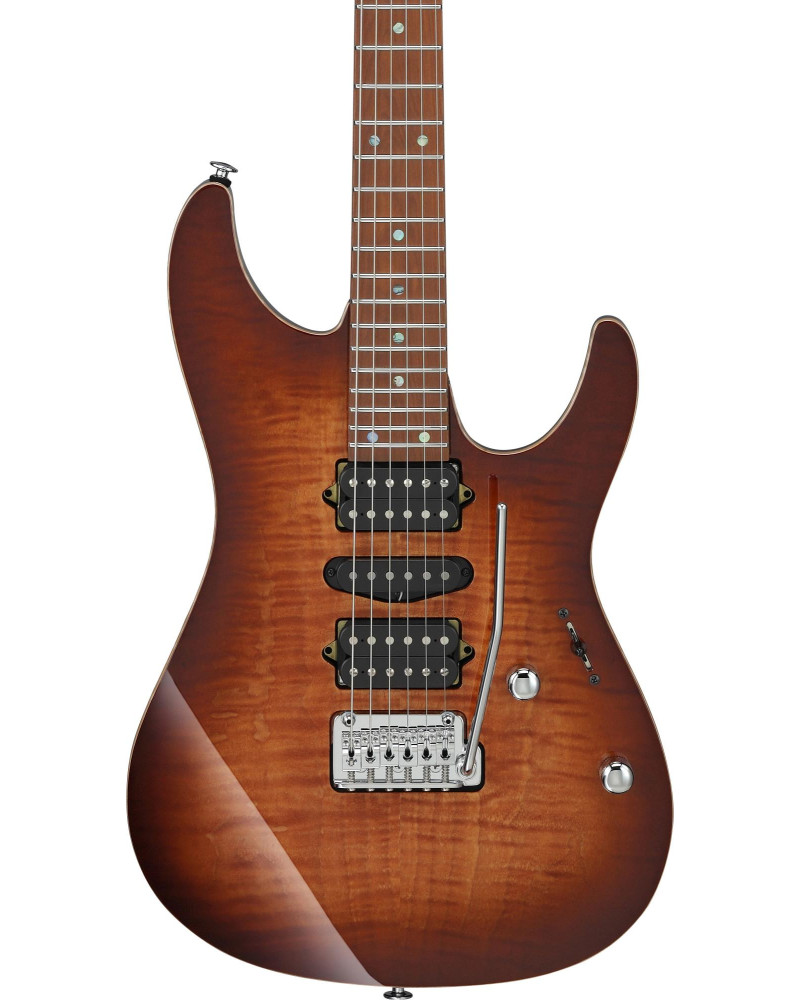

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups
The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

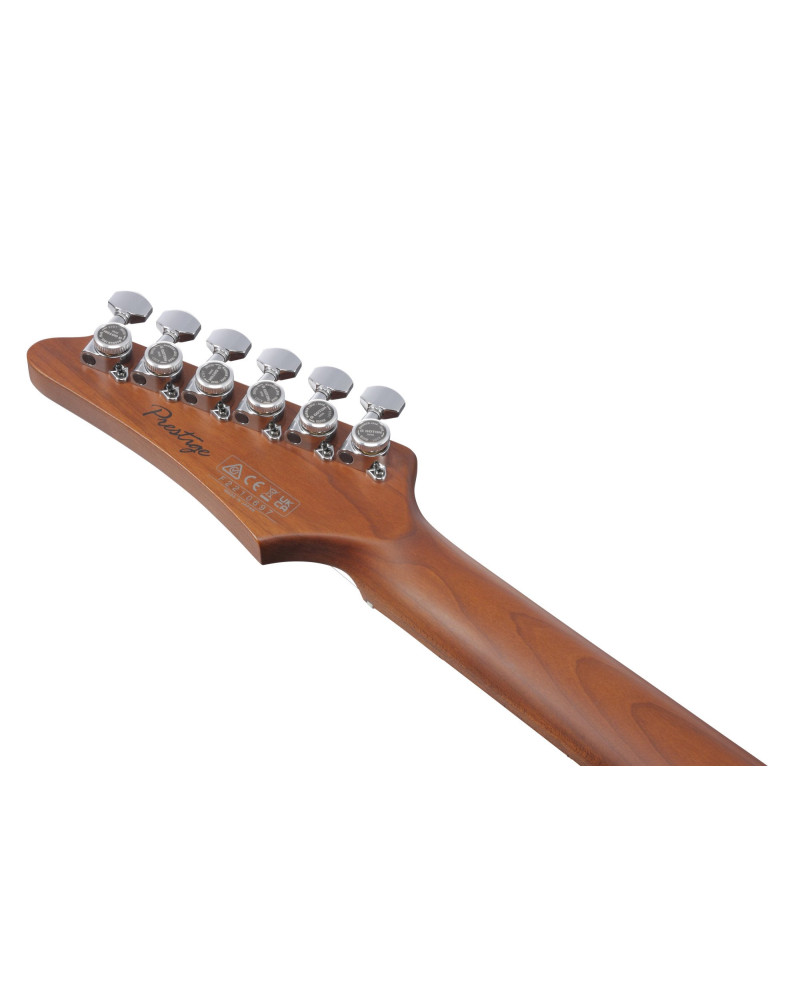

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
S-TECH WOOD Roasted Maple fretboard w/Abalone dot inlay
S-TECH special roasted treatment provides a superior attack and a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.
Oil-impregnated Bone nut /Stainless Steel Frets
The Oil-impregnated bone nut provides superior tuning stability and warm rich resonance. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
Oval C S-TECH WOOD Roasted Maple neck
The S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

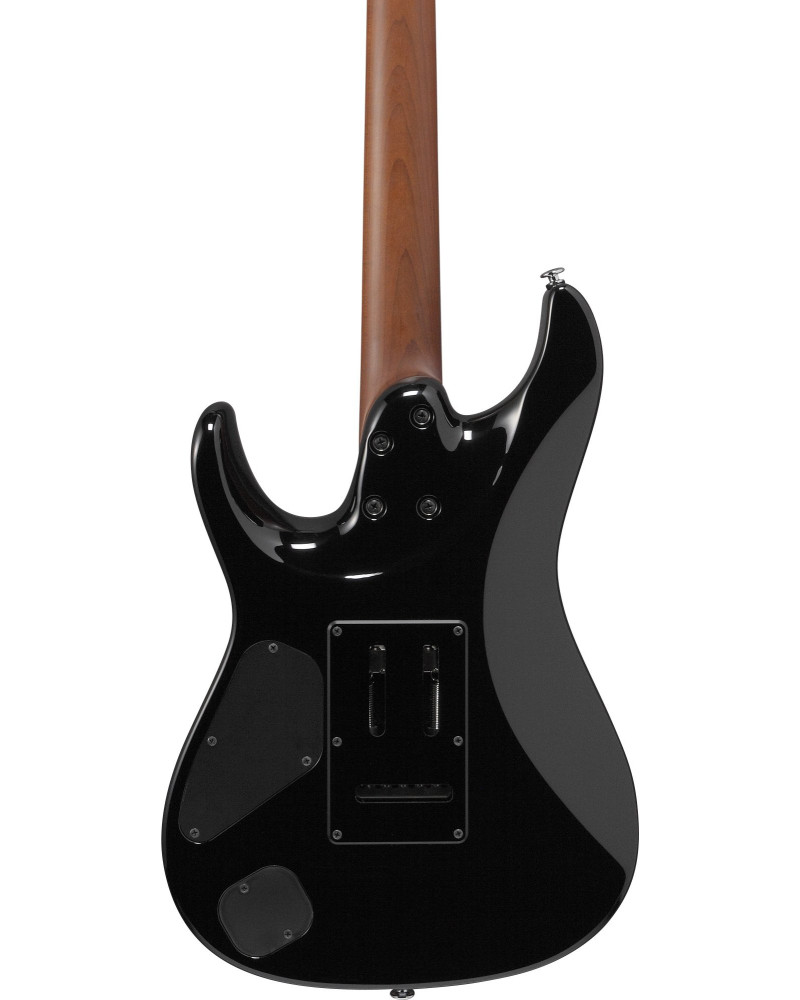

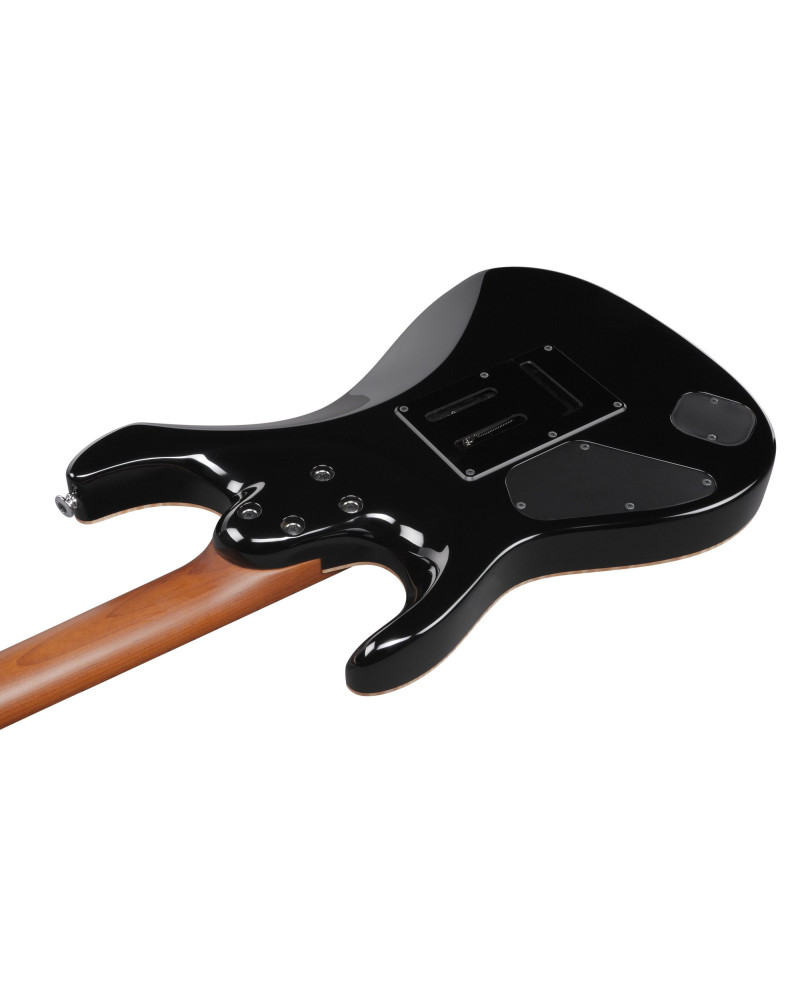

Ergonomic rear body contour
A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.
Luminlay side dots
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
Neck Dimensions
Scale : 648mm//25.5"
Width at NUT (a): 42mm
Width at 24F (b): 57mm
Thickness at 1F (c): 20.5mm
Thickness at 12F (d): 22.5mm
Radius : 305mmR
Switching System
When the pickup selector switch is in neck position, the neck humbucker is selected.
When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected.
When the switch is in center position, the center pickup is selected.
When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected.
When the switch is in bridge position, the bridge humbucker is selected.

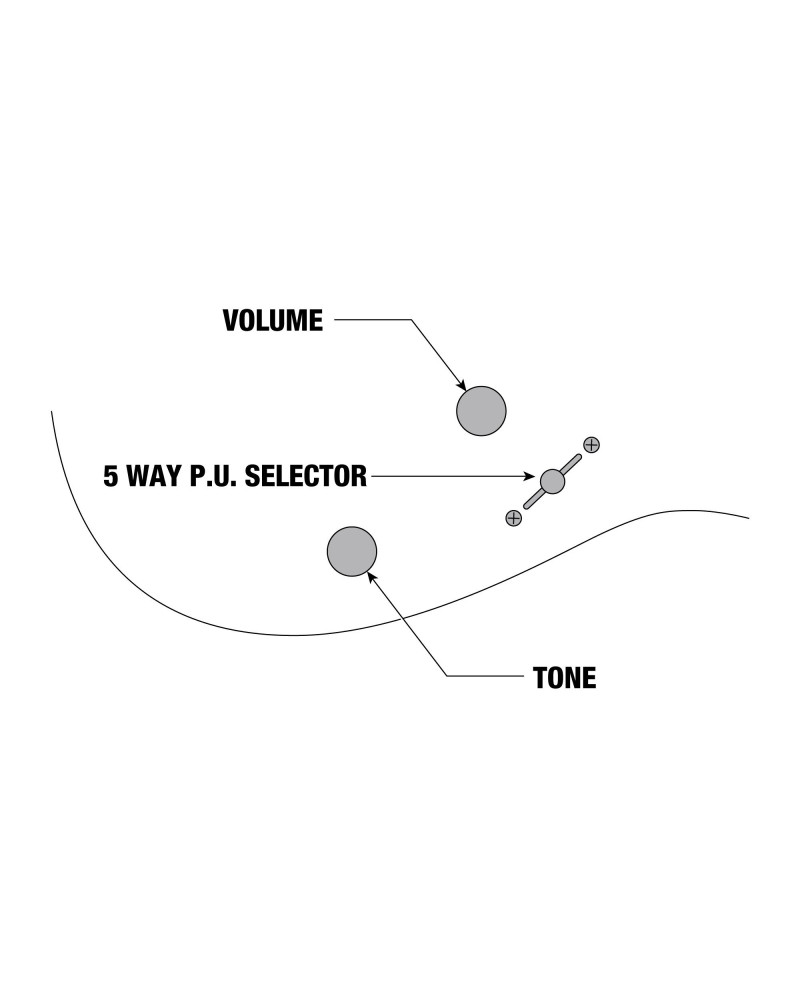

Controls
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body.
Closest to the neck is the five-way pickup selector switch.
Closer to the input jack is the tone knob.
The volume knob is located right above the five-way pickup selector switch.
