RGD61ALET
RGD Axe Design Lab
Fishman® Fluence™ Voicing switch on volume control (push/pull)
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Maple top / Okoume body
The Maple top sonically enriches the response while picking. The Okoume body provides a bright and solid sound.
Jumbo Sub Zero treated frets
Sub Zero treated frets can stand up against the hardest riffing and string-bending.
Evertune® bridge
The EverTune® bridge system keeps the guitar in tune under any conditions.
Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.
Fishman® Fluence™ Modern Humbucker Ceramic pickups
The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.
Wizard III 5pc Panga Panga/Walnut neck
The Super-thin and ultra-playable Wizard III 5-piece Panga Panga/Walnut neck substantially increases sustain.
Luminescent side dot inlays
The luminescent side dot inlays make it easy for players to perform on dark stages, matching the dazzling luminescent Ibanez headstock logo.
Schaller S-Lock strap lock pins
Indestructible Schaller S-Locks don't fail, even under the toughest conditions on stage.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
Neck Dimensions
Scale : 673mm//26.5"
Width at NUT (a): 43mm
Width at 24F (b): 58mm
Thickness at 1F (c): 19mm
Thickness at 12F (d): 21mm
Radius : 400mmR
Switching System
When the coil tap switch is in the neck position, the coil tap is on.
When the coil tap switch is in the bridge position, the coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected.
When the switch is in the center position, both neck and bridge pickup s are selected.
When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, neck side of the neck pickup is selected.
When the switch is in center position, the neck side of the neck pickup and neck side of the bridge pickup are selected.
When the switch is in bridge position, the neck side of the bridge pickup is selected.

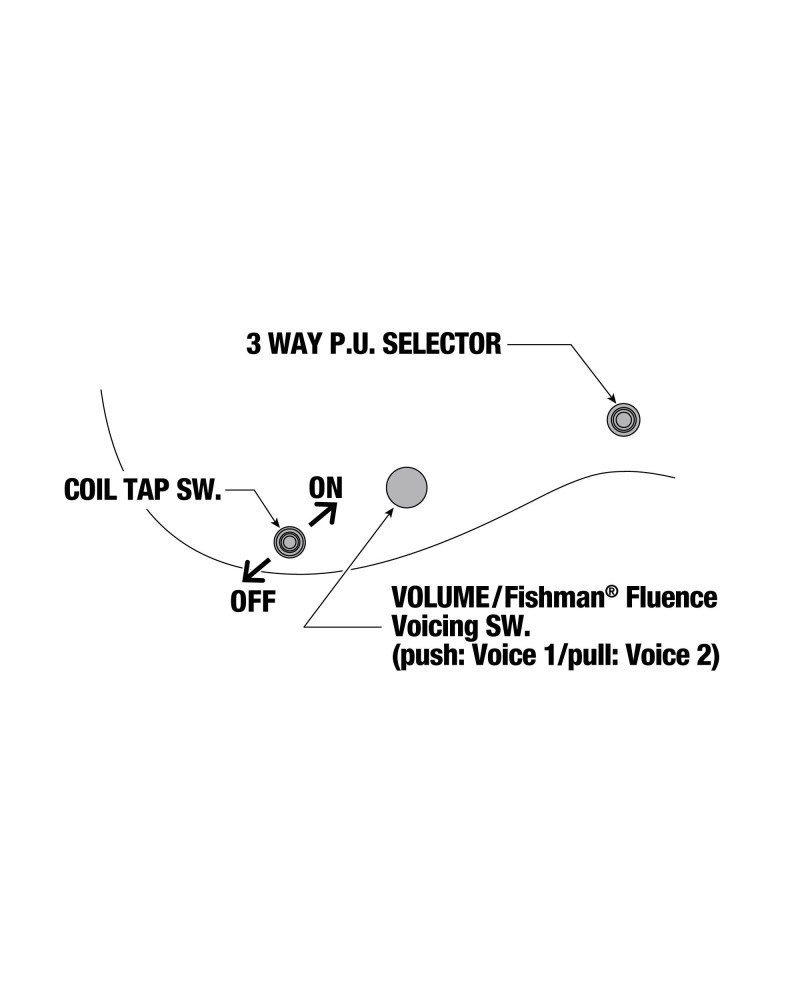

Controls
With the guitar held in the playing position, there are two switches and a knob along the lower edge of the body.
The switch closest to the knee cutout of the guitar is the three-way pickup selector switch.
Towards the end of the body is the volume knob and coil tap switch.
The volume knob also functions as a Fishman Fluence voicing switch.
When the knob is down, the pickups are in voicing 1, and when the knob is up, the pickups are in voicing 2.
When the coil tap switch is in neck position, the coil tap is on, and when the switch is in the bridge position, the coil tap is off.
