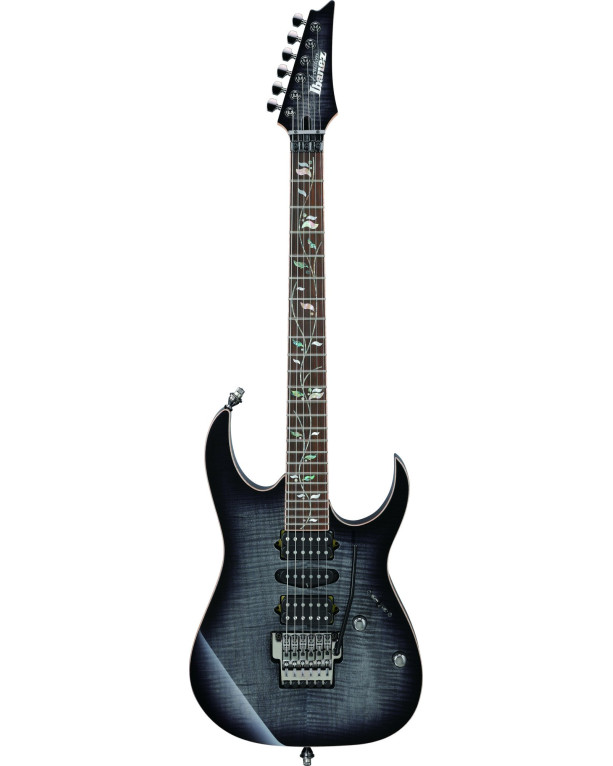

RG8570
RG j.custom
Made in Japan
Super Wizard 5pc Maple/Wenge neck
The Super Wizard 5pc Maple/Wenge neck provides extra-smooth playing.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Jumbo frets with j.custom fret edge treatment
The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes. The j.custom fret edge treatment provides the ultimate smooth touch around every single fret.
Selected Flamed Maple top(4mm) / African Mahogany body
Selected Flamed Maple top(4mm) displays a beautiful wood grain and the African Mahogany body delivers a rich mid-low end.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
Gotoh® Strap lock pins
Gotoh® Strap lock pins protect your guitar from falling under tough stage performance.
Lo-Pro Edge tremolo
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups
The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.
Special j.custom Neck
RG j.custom Super Wizard 5pc Maple/Wenge neck includes jumbo frets finished with our j.custom special fret edge treatment for a super smooth and comfortable performance. The "Velvetouch" finish on the back of the neck ensures a "just right" feel and easy playability.
All Access Neck Joint
j.custom special neck joint offers superior playability at the high frets.
Luminlay side dots
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Neck Dimensions
Scale : 648mm//25.5"
Width at NUT (a): 43mm
Width at 24F (b): 58mm
Thickness at 1F (c): 17mm
Thickness at 12F (d): 19mm
Radius : 430mmR
Switching System
When the pickup selector switch is in neck position, the neck humbucker is selected.
When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected.
When the switch is in center position, the center pickup is selected.
When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected.
When the switch is in bridge position, the bridge humbucker is selected.
Controls
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body.
Closest to the neck is the five-way pickup selector switch.
Closer to the input jack is the tone knob.
The volume knob is located right above the five-way pickup selector switch.
