PGM50
PGM/FRM
5pc Maple/Walnut neck
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Medium frets with Premium fret edge treatment
Medium sized frets enhances the accuracy to your notes. The Premium Fret Edge Treatment offers a super smooth, comfortable performance.
American Basswood body
The American Basswood body delivers a natural and flat tone.
DiMarzio® Air Classic™ (H) / DiMarzio® PGM™ (S) / DiMarzio® Air Classic™ (H) pickups
DiMarzio® Air Classic™ pickup combining vintage voicing with modern technology delivers an incredible touch-sensitive sound. DiMarzio® PGM single-coil middle pickup provides a perfect mix of vintage and modern sounds.

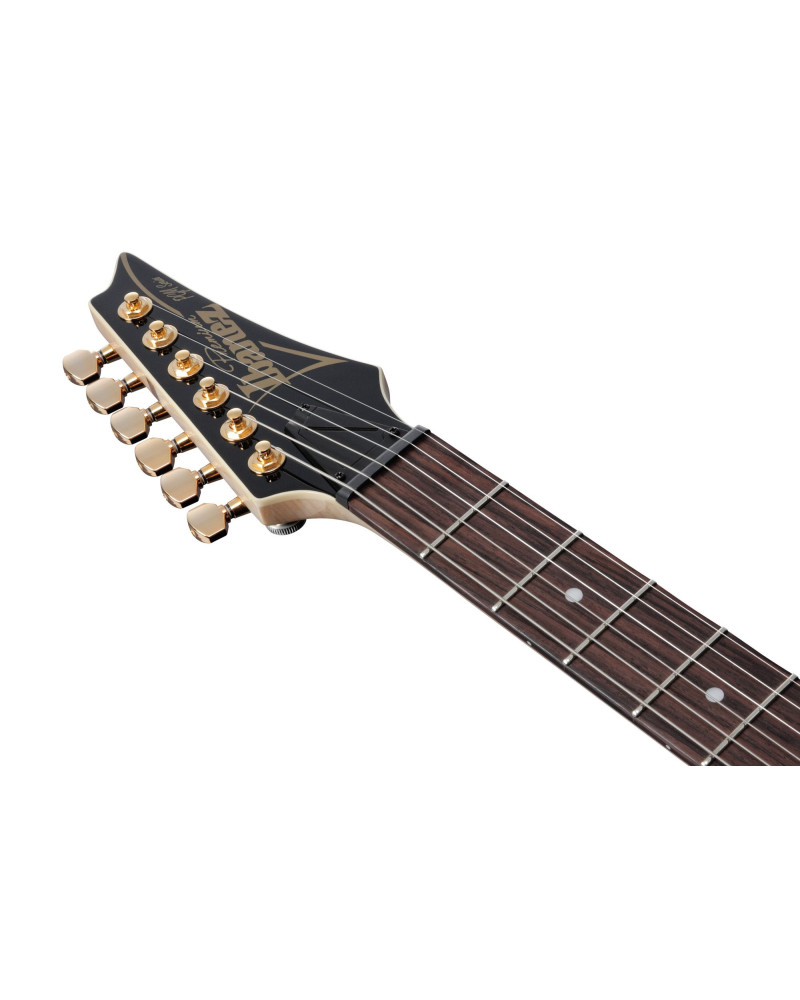

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
F106 bridge
The F106 bridge enriches sustain. String height adjustment can be done easily and independently.
Neck Dimensions
Scale : 648mm//25.5"
Width at NUT (a): 43mm
Width at 22F (b): 57mm
Thickness at 1F (c): 20mm
Thickness at 12F (d): 22mm
Radius : 400mmR
Switching System
When the pickup selector switch is in neck position, the neck humbucker is selected.
When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected.
When the switch is in center position, the center pickup is selected.
When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected.
When the switch is in bridge position, the bridge humbucker is selected.

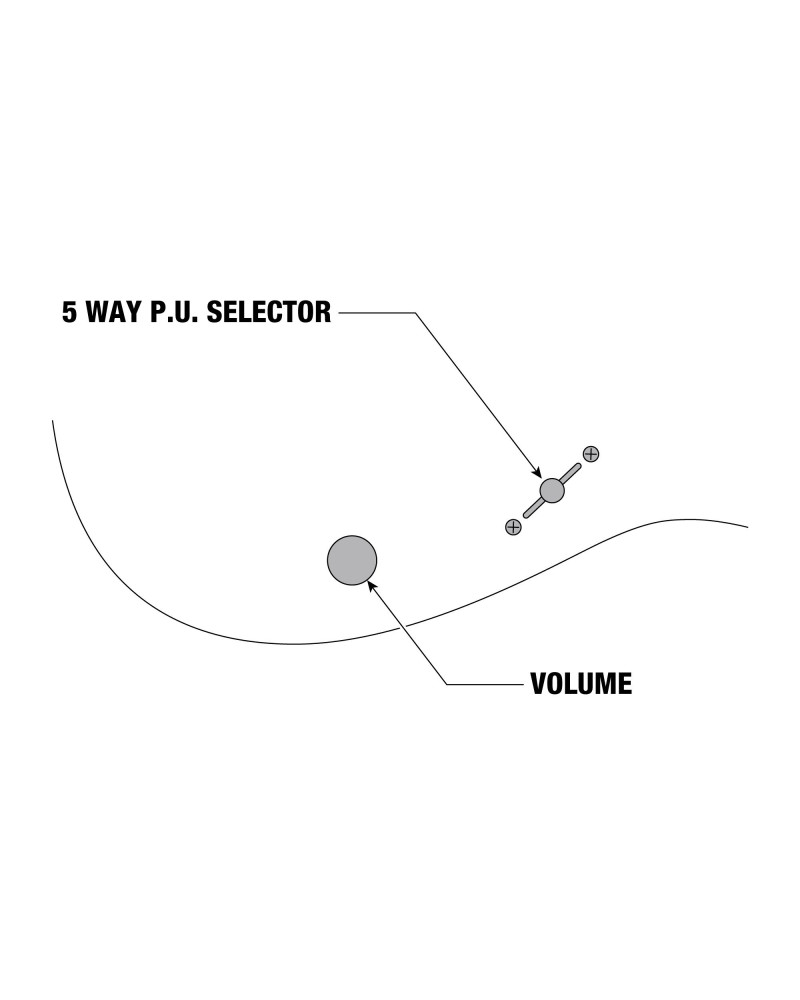

Controls
With the guitar held in the playing position, there is a five-way pickup selector switch close to the edge of the body.
The volume knob is located near the end of the body.
