LGB30
GB
3pc Nyatoh/Maple neck
The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
Medium frets with Artstar fret edge treatment
Medium sized frets enhances the accuracy to your notes. The Artstar fret edge treatment with spherical surface processing offers super smooth performance.

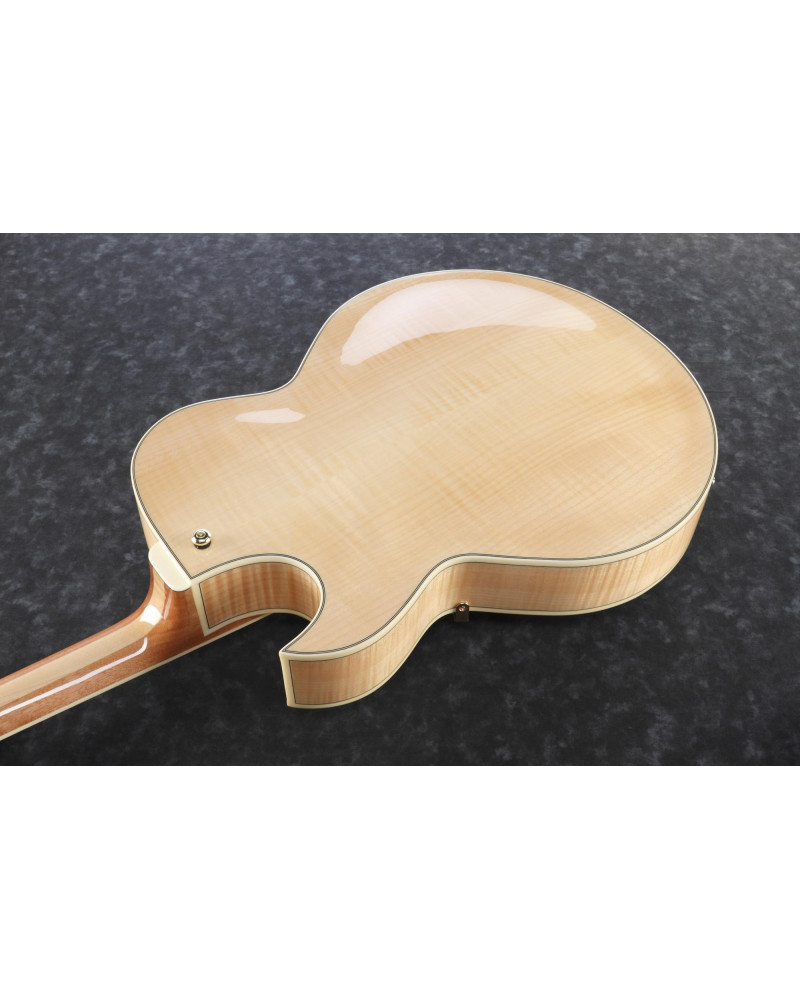

Spruce top / Flamed Maple back and sides
The Spruce top's smooth wood appearance enriches the response of your playing and the Flamed Maple back and sides provide a bright attack with a solid sound.
Super 58 pickups
Super 58 pickups feature moderate output and vintage tone.
Gibraltar Artist bridge
The Gibraltar Artist bridge, made of a lightweight aluminum bridge frame and zinc saddles, provides natural tone, rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.
LGB30 tailpiece
The artistically-designed LGB30 tailpiece provides great tuning stability.
Neck Dimensions
Scale : 628mm
Width at NUT (a): 43mm
Width at 20F (b): 56.3mm
Thickness at 1F (c): 20mm
Thickness at 9F (d): 22mm
Radius : 305mmR

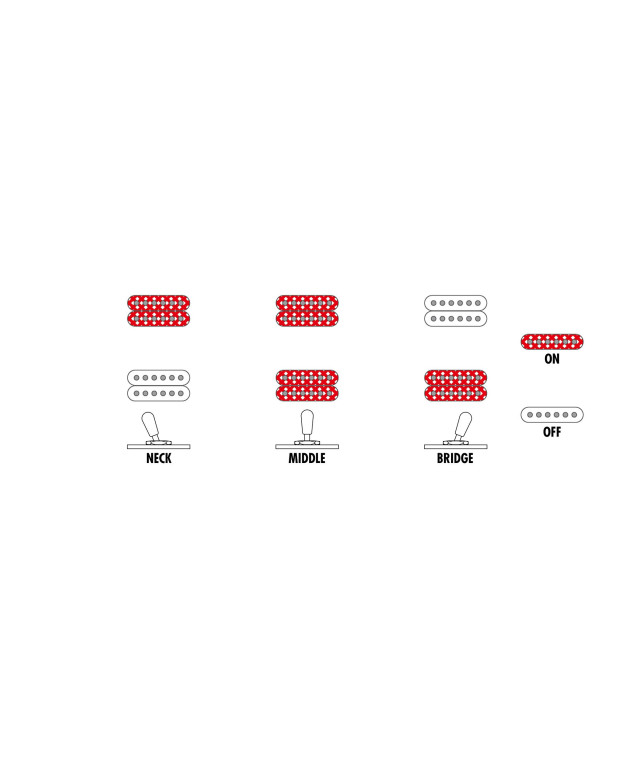

Switching System
When the pickup selector switch is in the neck position, the neck pickup is active.
When the switch is in the center position, both the neck and bridge pickups are selected.
When the switch is in the bridge position, the bridge pickup is selected.

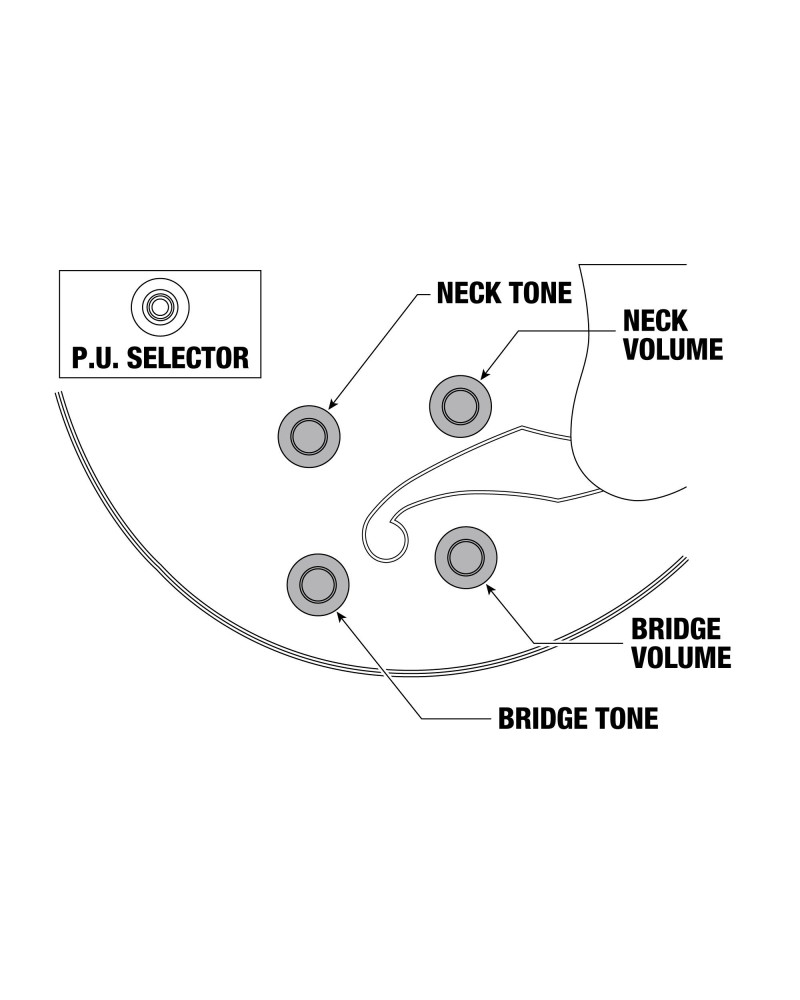

Controls
There are two knobs located along the lower edge of the body.
The knob closest to the end of the body is the bridge tone knob, and the knob closest to the sound hole is the bridge volume knob.
Above these, there are two more knobs closer to the bridge.
The knob closest to the end of the body is the neck tone knob, and the knob closest to the sound hole is the neck volume knob.
The pickup selector is located above the neck pickup.
