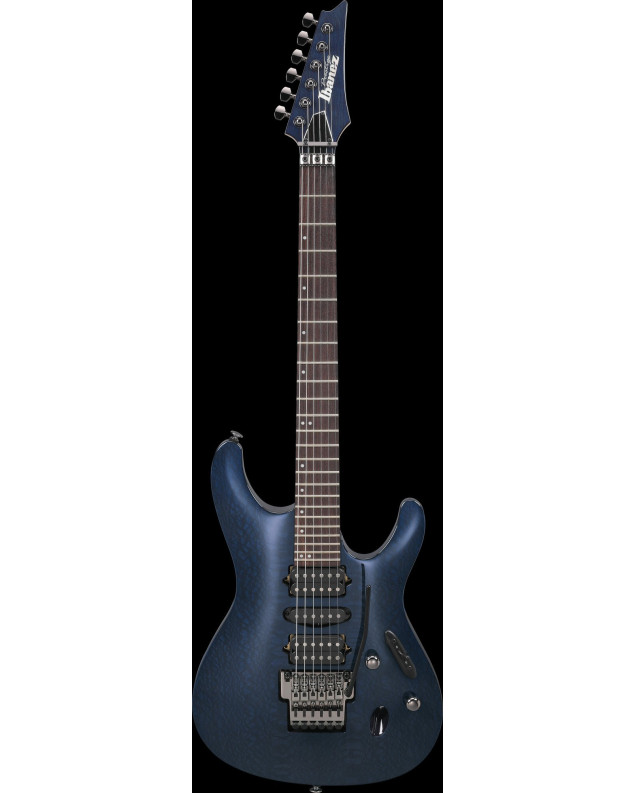

S6670SK
S Prestige
Made in Japan
Super Wizard HP 5pc Maple/Walnut neck with KTS™ TITANIUM rods
The Super Wizard 5pc Maple/Walnut neck provides extra-smooth playing.
Jumbo frets with Prestige fret edge treatment
The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.
Silky Oak top/African Mahogany body
The Silky Oak top has an exotic wood grain and the African Mahogany body delivers a rich mid-low end.

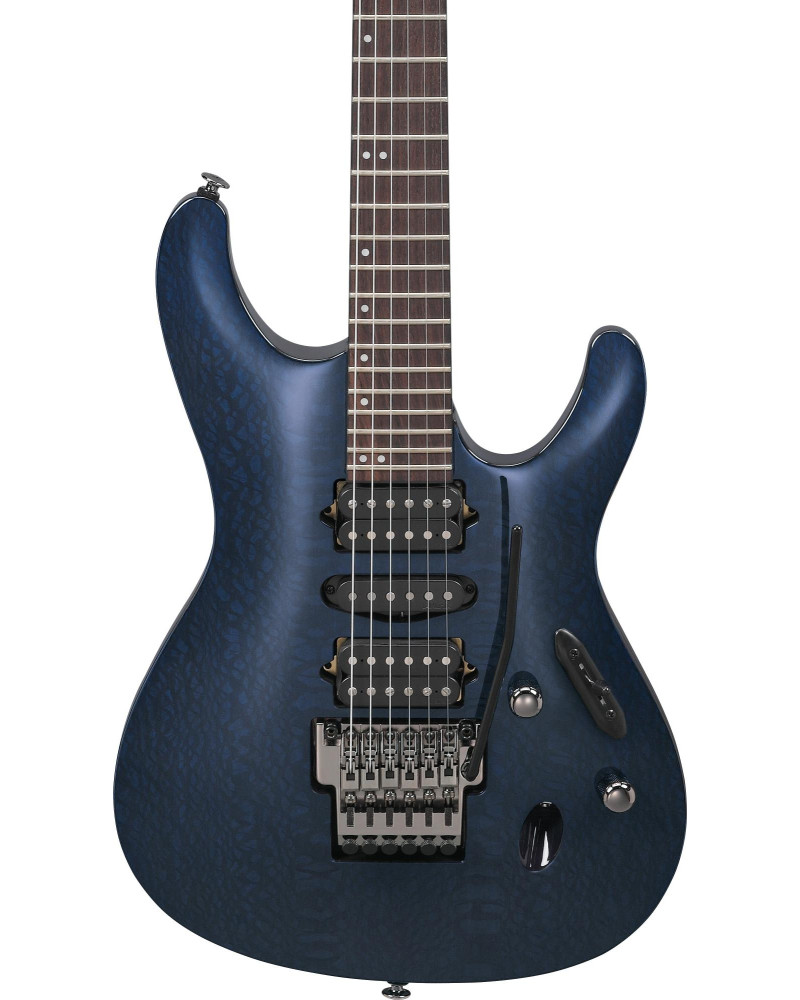

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups
The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.
Lo-Pro Edge tremolo bridge
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

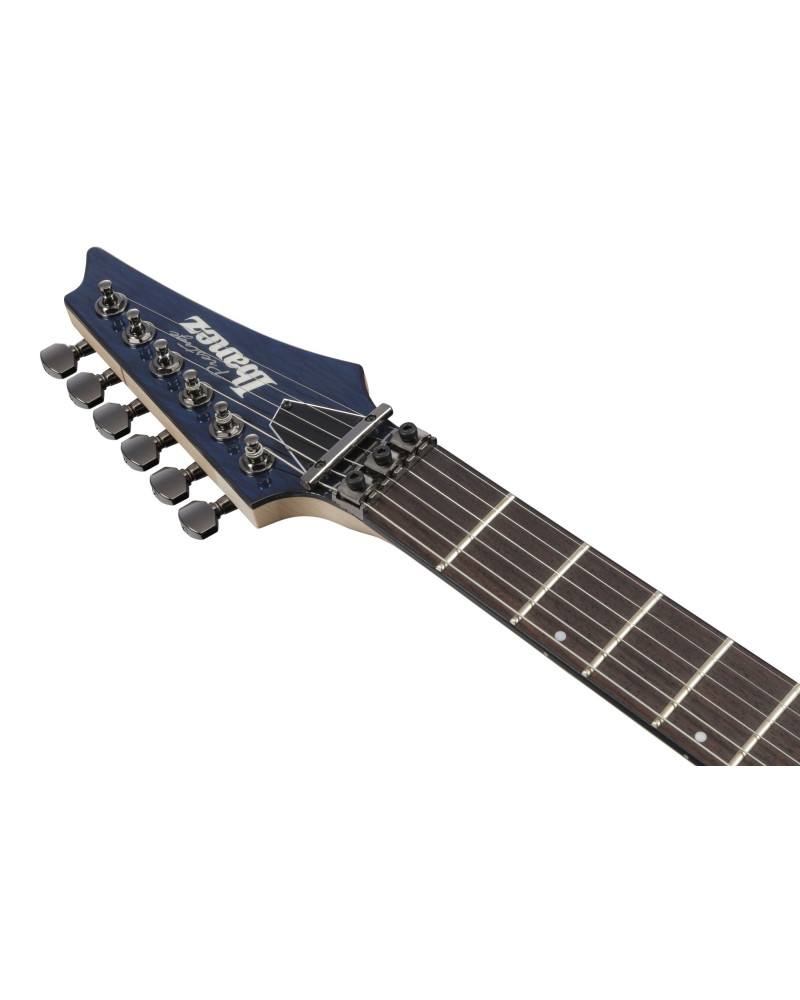

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
Neck Dimensions
Scale : 648mm//25.5"
Width at NUT (a): 43mm
Width at 24F (b): 58mm
Thickness at 1F (c): 17mm
Thickness at 12F (d): 19mm
Radius : 430mmR
Switching System
When the pickup selector switch is in neck position, the neck humbucker is selected.
When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected.
When the switch is in center position, the center pickup is selected.
When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected.
When the switch is in bridge position, the bridge humbucker is selected.
Controls
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body.
Closest to the neck is the five-way pickup selector switch.
Closer to the input jack is the tone knob.
The volume knob is located right above the five-way pickup selector switch.
