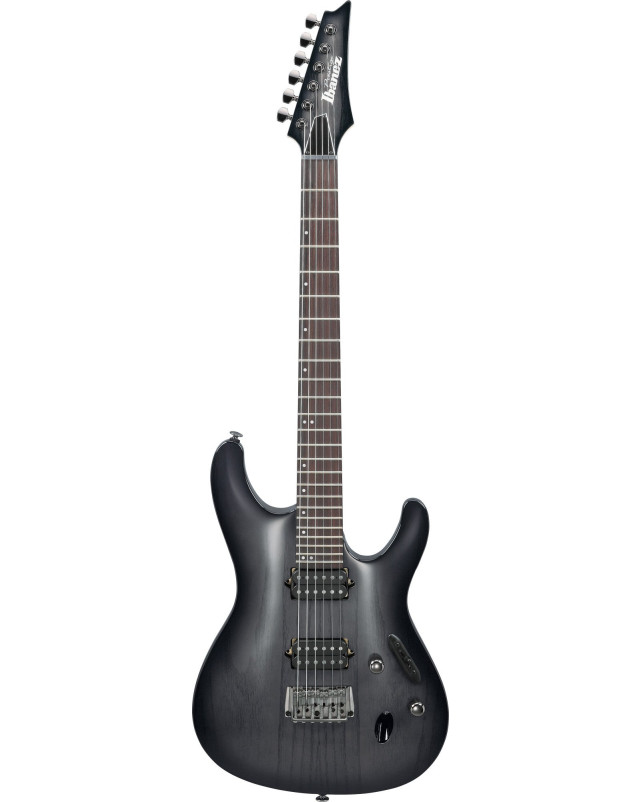

S6621AH
S Prestige
Made in Japan
Super Wizard HP 5pc Maple/Walnut neck with KTS™ TITANIUM rods
The Super Wizard 5pc Maple/Walnut neck provides extra-smooth playing.
Jumbo frets with Prestige fret edge treatment
The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.

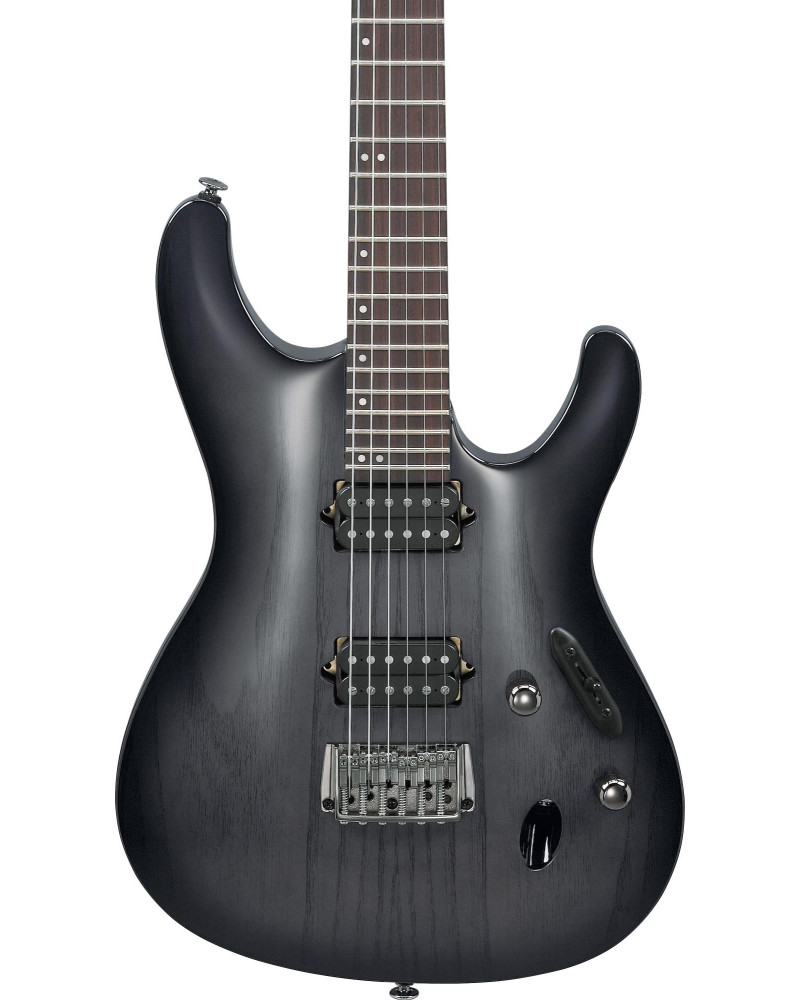

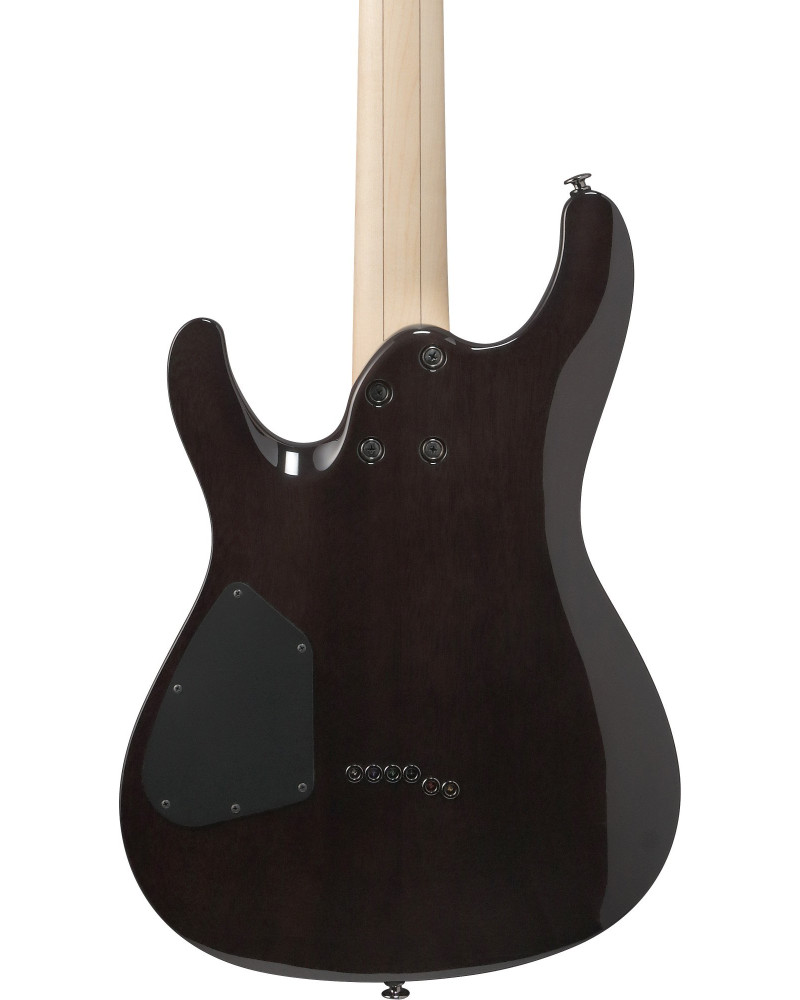

Ash top / African Mahogany body
The Ash top displays a beautiful wood grain and the African Mahogany body delivers a rich mid-low end.
Gibraltar Standard III bridge
The Gibraltar Standard III bridge, featuring a redesigned baseplate and saddles, offers enhanced playing comfort while ensuring optimal string vibration transfer.
DiMarzio® Air Norton™ / The Tone Zone® pickups
A pair of high-output DiMarzio Air Norton™ and The Tone Zone® pickups provides a huge sound with a broad dynamic range.

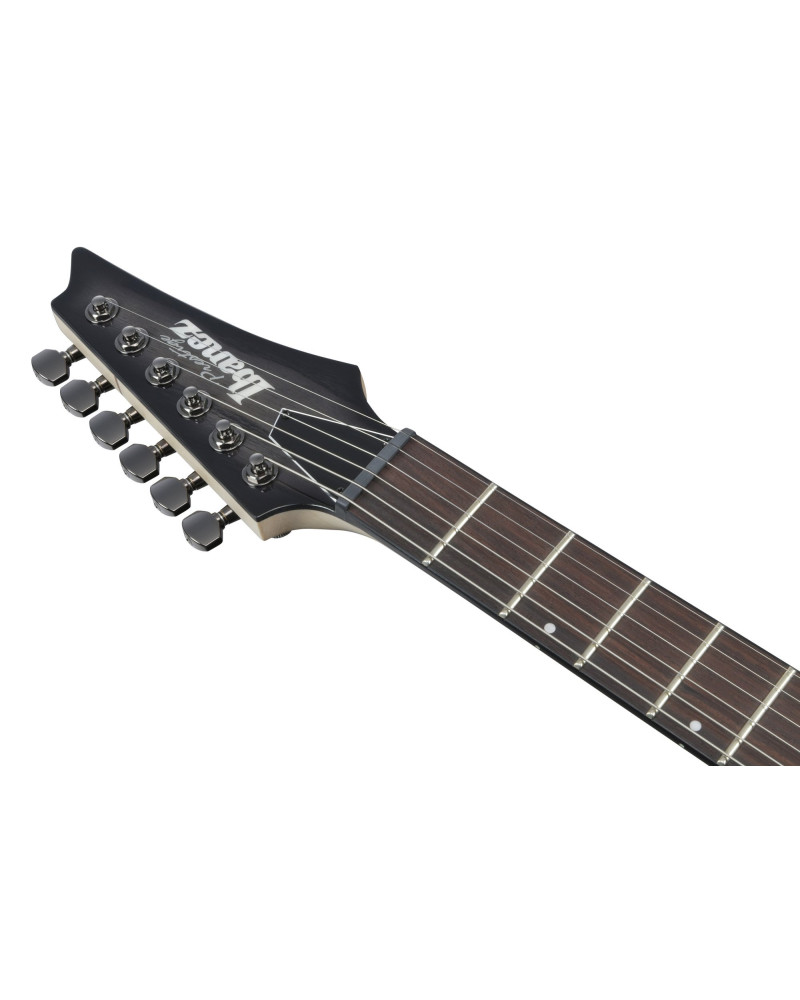

Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

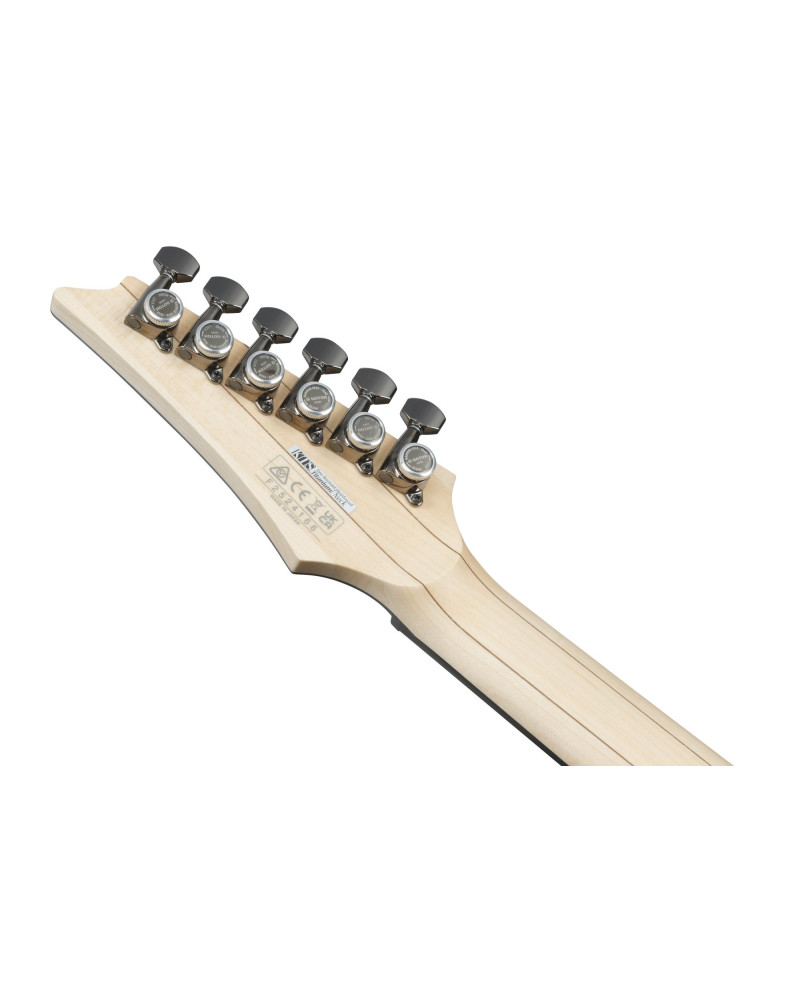

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
Neck Dimensions
Scale : 648mm//25.5"
Width at NUT (a): 43mm
Width at 24F (b): 58mm
Thickness at 1F (c): 17mm
Thickness at 12F (d): 19mm
Radius : 430mmR
Switching System
When the pickup selector switch is in neck position, the neck pickup is selected.
When the switch is between neck and center position, the neck humbucker is selected and is in parallel.
When the switch is in center position, both neck and bridge pickups are selected.
When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected.
When the switch is in bridge position, the bridge pickup is selected.

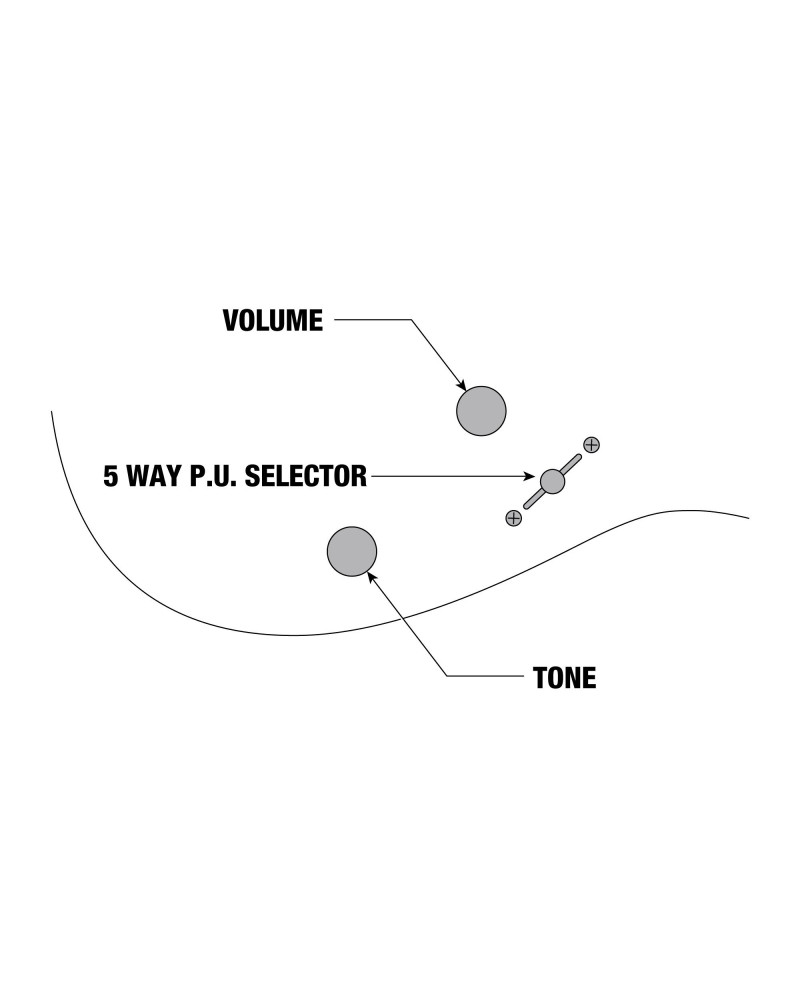

Controls
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body.
Closest to the neck is the five-way pickup selector switch.
Closer to the input jack is the tone knob.
The volume knob is located right above the five-way pickup selector switch.
