S1070PBZ
S Premium
DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups
The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.
Wizard 11pc Panga Panga/Maple/Walnut/Bubinga neck
The Wizard 11pc neck is made of Panga Panga, Maple and Walnut which contributes to the neck’s extreme rigidity and massive sustain.
Poplar Burl/Walnut/Curly Maple/Panga Panga top / African Mahogany body
The Poplar Burl/Walnut/Curly Maple/Panga Panga top flaunts a gorgeous wood grain. African Mahogany used as body wood delivers a rich mid-low end.
Premium Fret Edge Treatment
Premium Fret Edge Treatment offer super smooth,comfortable performance.
Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.
Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

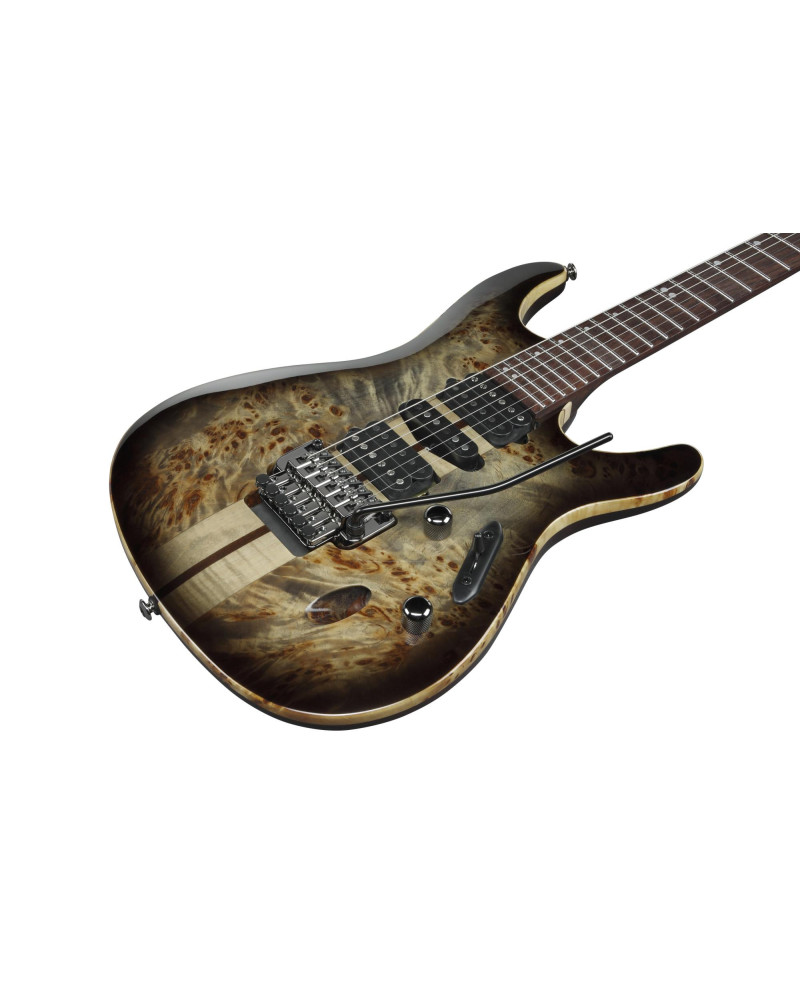

Edge-Zero II tremolo with Zero Point System
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning. In addtion, the zero point system provides much greater tuning stability.

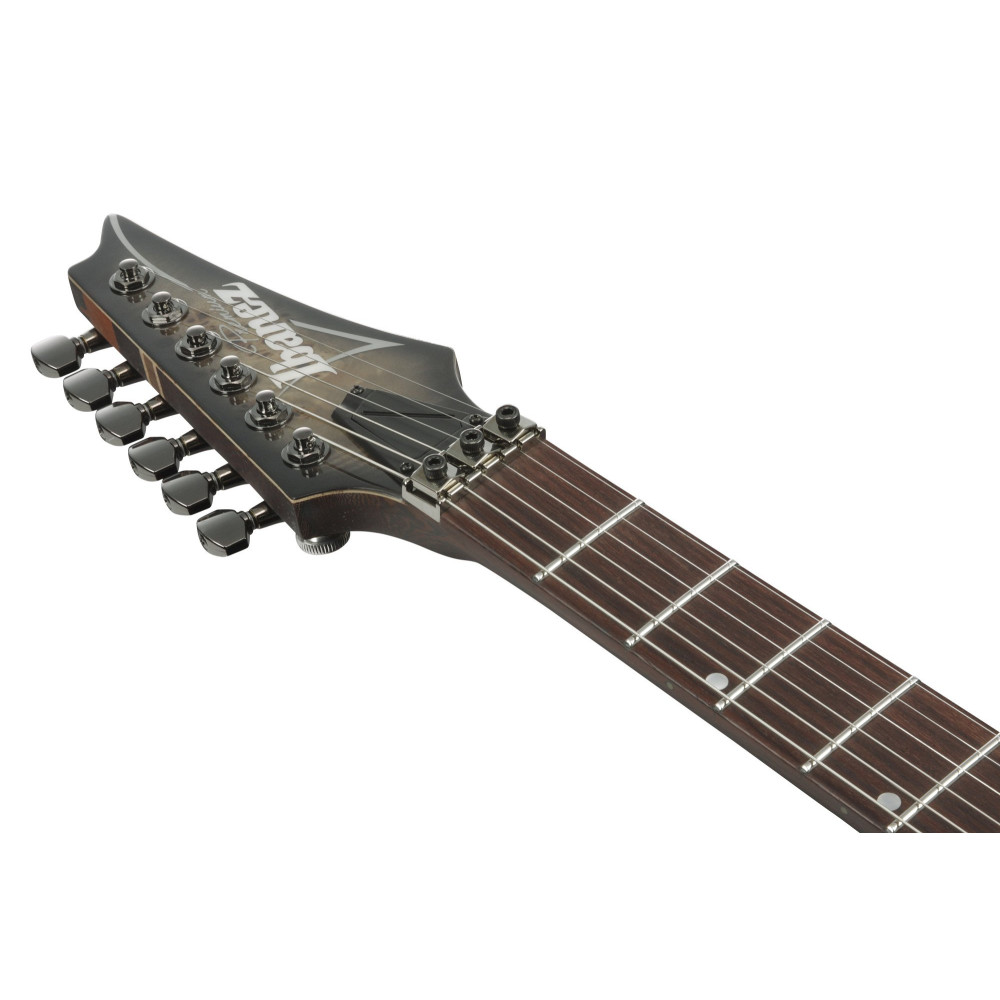

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
Neck Dimensions
Scale : 648mm//25.5"
Width at NUT (a): 43mm
Width at 24F (b): 58mm
Thickness at 1F (c): 18mm
Thickness at 12F (d): 20mm
Radius : 400mmR

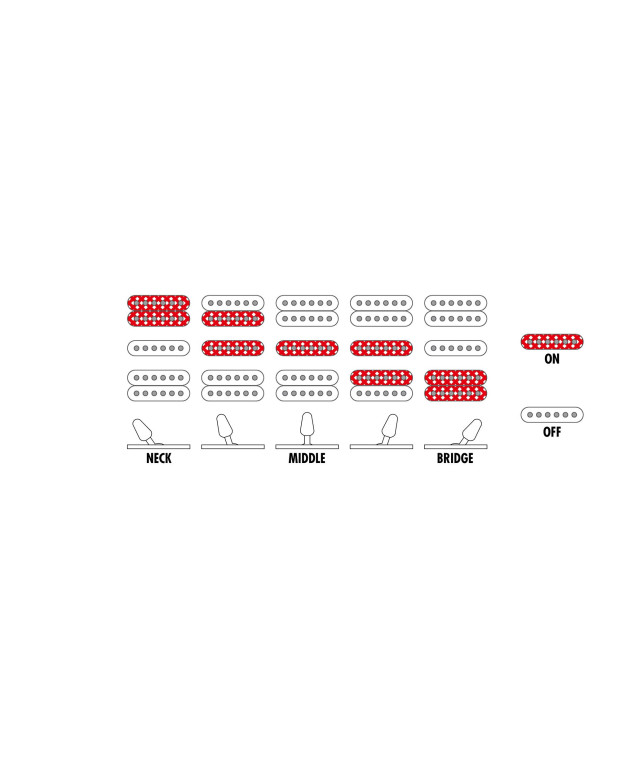

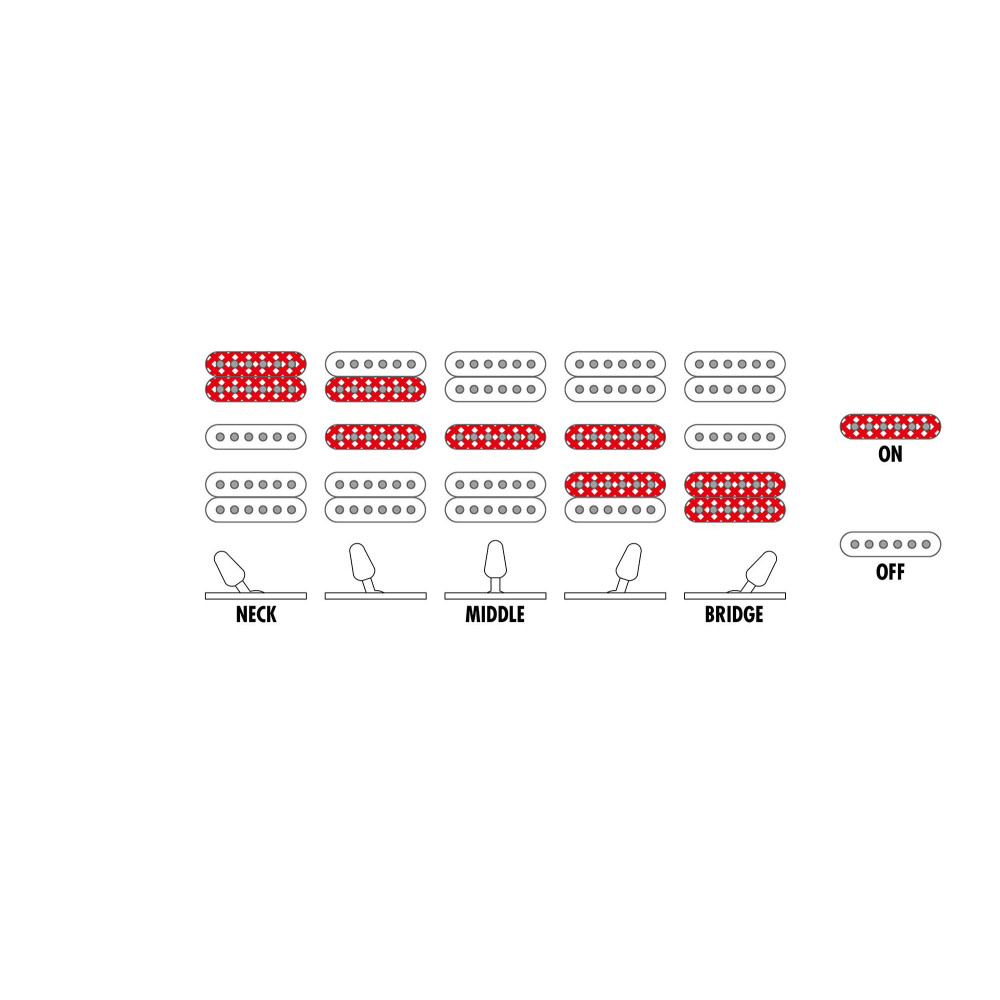

Switching System
When the pickup selector switch is in neck position, the neck humbucker is selected.
When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected.
When the switch is in center position, the center pickup is selected.
When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected.
When the switch is in bridge position, the bridge humbucker is selected.

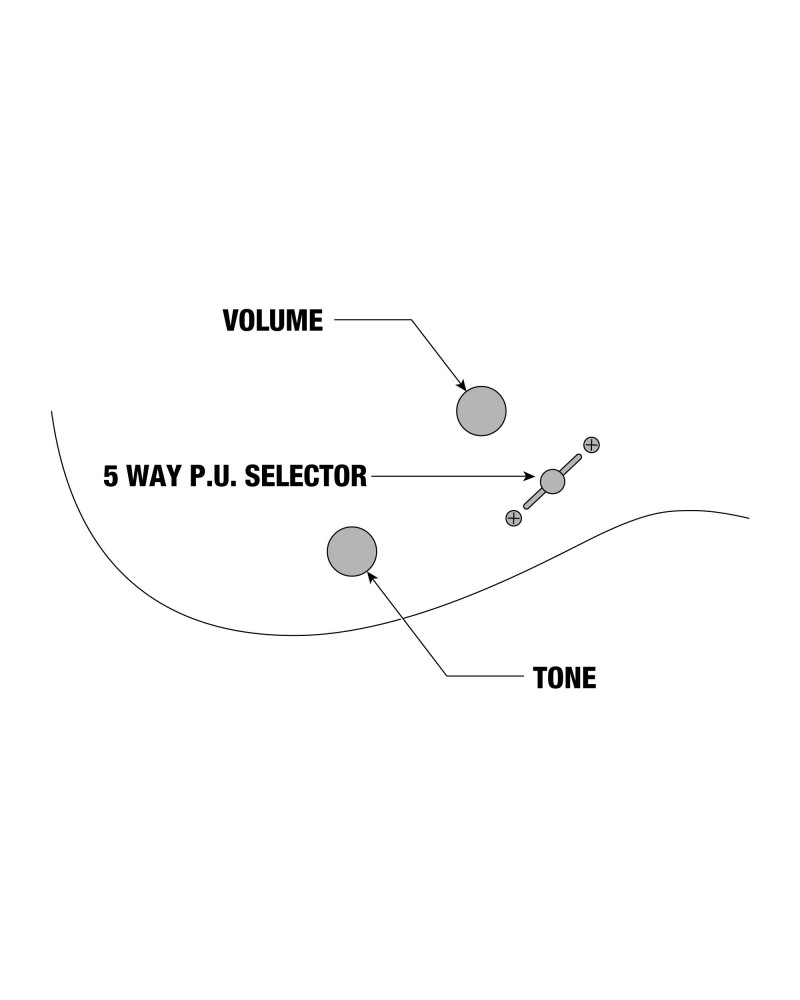

Controls
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body.
Closest to the neck is the five-way pickup selector switch.
Closer to the input jack is the tone knob.
The volume knob is located right above the five-way pickup selector switch.
