KRYS10
KRYS

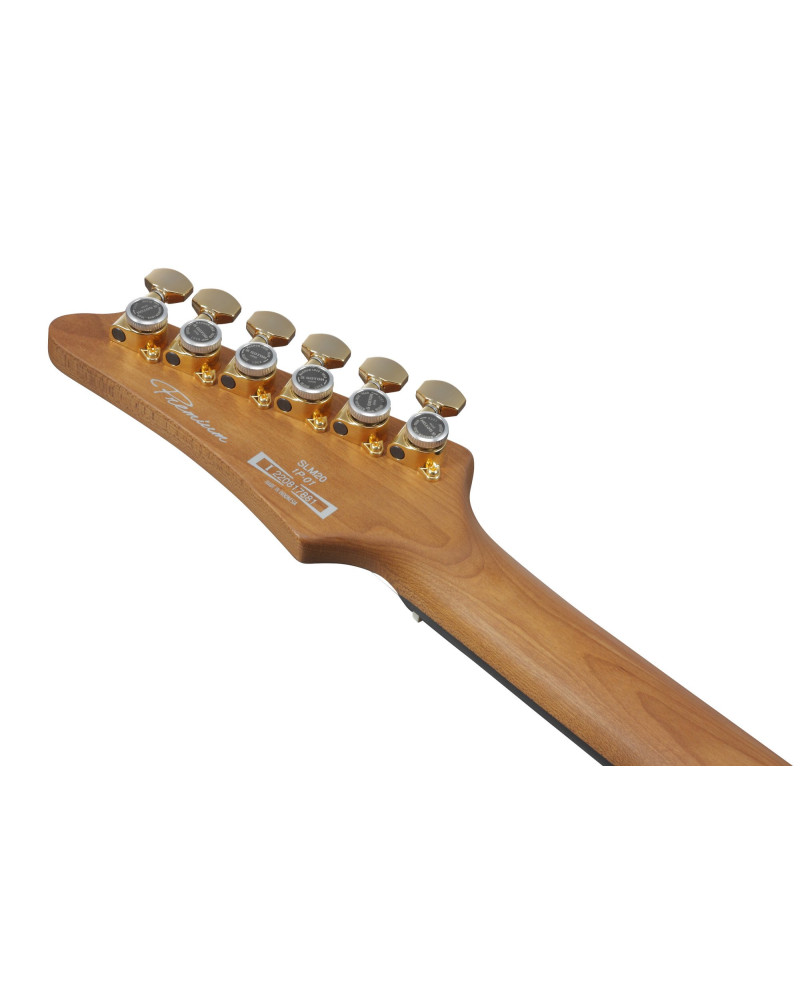

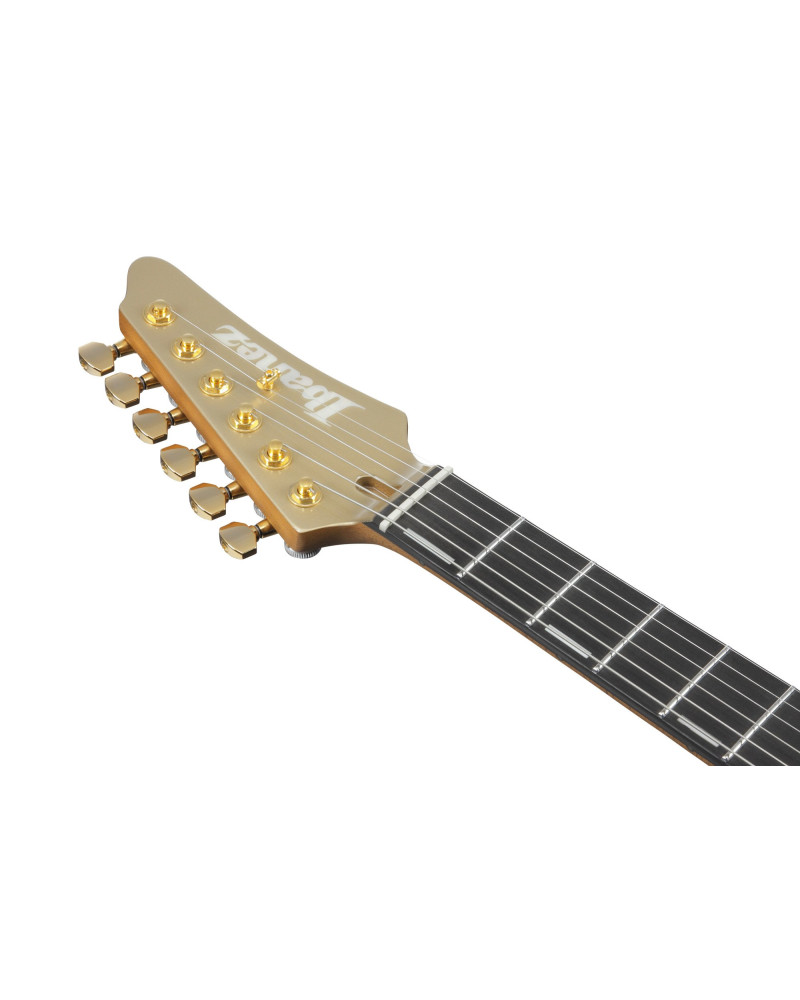

Oval C Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
Ash body
The Ash body delivers a pleasant brightness and rich sustain.
Fishman® Fluence™ Scott LePage Custom Series Humbucker pickups
Scott's custom Fishman® Fluence™ pickups span the entire range of aggressive lead and rhythm tones to vintage single coil combinations. Neck Pickup Voice 1 (Vintage PAF): The ideal, elusive PAF neck tone with the dynamics and output level you want. / Voice 2 (Clear, airy chime): A Fluence-exclusive neck tone, with unreal highs, vocal midrange, and tight lows. / Voice 3 (Clear, Vintage Single Coil) Bridge Pickup Voice 1 (Vintage PAF): The ideal, calibrated vintage PAF bridge humbucker tone at the perfect output level. / Voice 2 (Classic Hot Rod): The quintessential hot rodded bridge humbucker tone without all the baggage. / Voice 3 (Slightly Overwound Single Coil)
Gotoh® T1502 tremolo
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.
Fishman® Fluence™ Voicing switch for Scott LePage Custom Series pickups
The Voicing switch allows the pickups to switch between three musically complementary voices.
Neck Dimensions
Scale : 648mm//25.5"
Width at NUT (a): 42mm
Width at 24F (b): 57mm
Thickness at 1F (c): 20.5mm
Thickness at 12F (d): 22.5mm
Radius : 305mmR

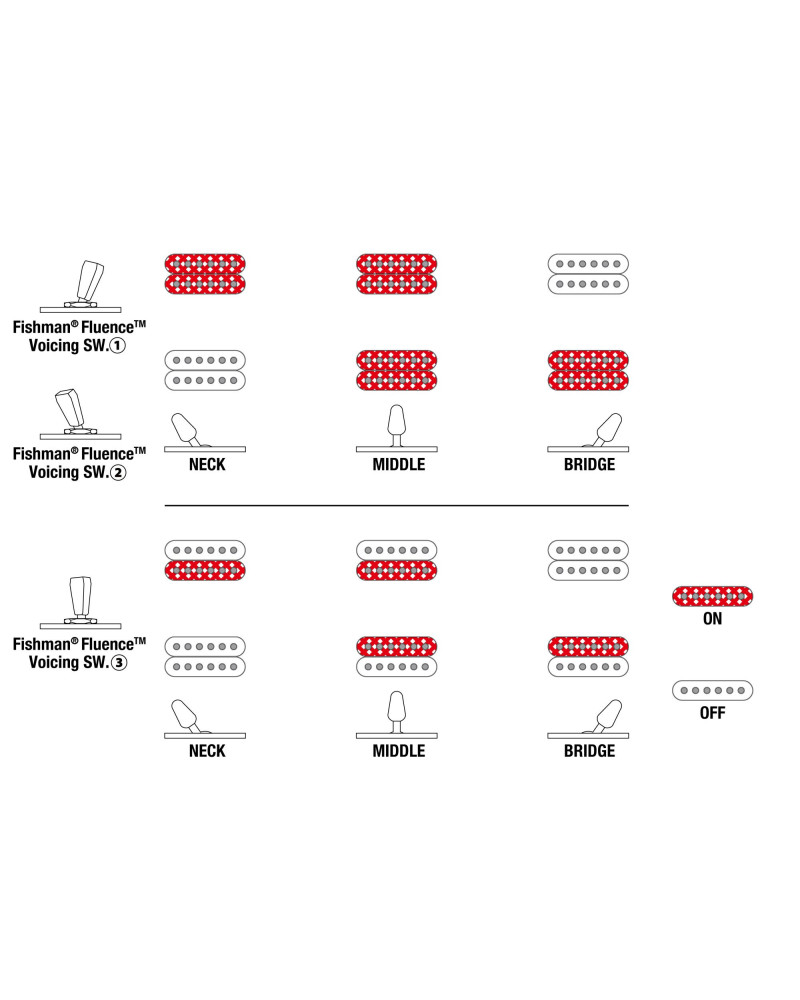

Switching System
When the Fishman Fluence Voicing switch is set to Voice 1 and the pickup selector is in the neck position, the full neck humbucker is activated.
When the middle position is selected, both full humbuckers are activated. Selecting the bridge position activates the full rear humbucker.
When the Fishman Fluence Voicing switch is set to Voice 2, the pickup layout is the same as Voice 1, with both pickups in Clear, airy chime mode and Classic Hot Rod mode respectively.
When the Fishman Fluence Voicing switch is in Voice 3 and the pickup selector is in the neck position, only the inner coil of the neck pickup is activated.
When the middle position is selected, only the inner coils of both pickups are activated.
When the bridge position is selected, only the inner coil of the rear pickup is activated.

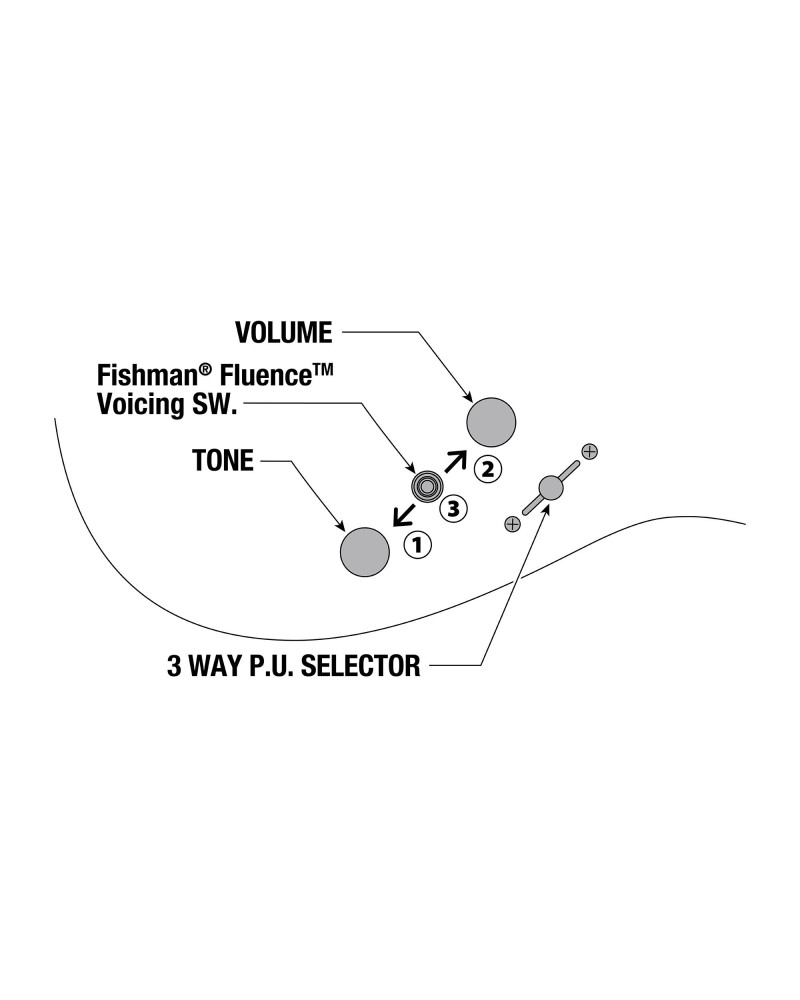

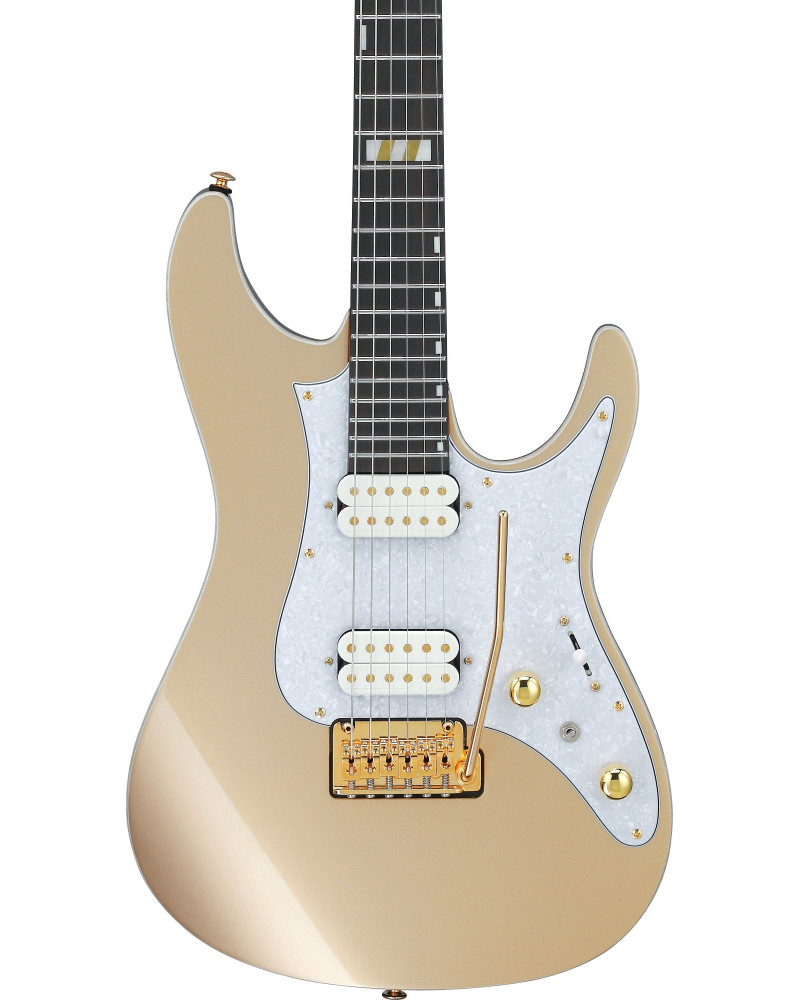

Controls
With the guitar held in the playing position, there is a three-way pickup selector switch near the knee cutout on lower part of the body.
Above it are three controls.
The control closest to the neck is the volume knob, the Fishman Fluence Voicing switch is in the middle, and the control closest to the end of the body is the tone knob.
The Fishman Fluence Voicing switch changes the overall tone of the pickups: Voice 1 is engaged when the switch is in the the bridge position, Voice 2 is engaged when the switch is is in the neck position, and Voice 3 is engaged when the switch is in the middle position. When the Fishman Fluence Voicing switch set to Voice 1, both pickups are in Vintage PAF mode; in Voice 2, the neck pickup is in Clear, airy chime mode, and the bridge pickup is in Classic Hot Rod mode.
In Voice 3, the neck pickup is in Clear, Vintage Single Coil mode, and the bridge pickup is in Slightly Overwound Single coil mode.
