The MS-50G+ MultiStomp combines the power of a multi-effects processor into a single stompbox. With 100 effects, guitarists now have the perfect utility pedal to complement their personalized pedal board.
100 EFFECTS
The MS-50G+ features our latest Drives, Modulations, Delays, Reverbs, Compressors, Filters, and Special Effects. You can choose from classic effect emulations to Zoom originals, including preamps that are developed with our Multi-Layer IR technology.
DESIGN YOUR OWN PATCHES
Chain up to 6 effects to design and save your own custom patches.
COLOR CODED FOR THE STAGE
The LCD screen changes color with each category making it easier to distinguish effect types while scrolling.
BUILT TO LAST
The MS-50G+ is built with a sturdy metal frame designed to withstand the rigors of live performance.
CROSS KEY SWITCHES FOR EASY ACCESS
The Cross Key switches allow you to instantly switch between effects with a tap of your foot.
TWEAK IT
Adjusting and tweaking parameters for each effect can be done with the four encoder knobs.

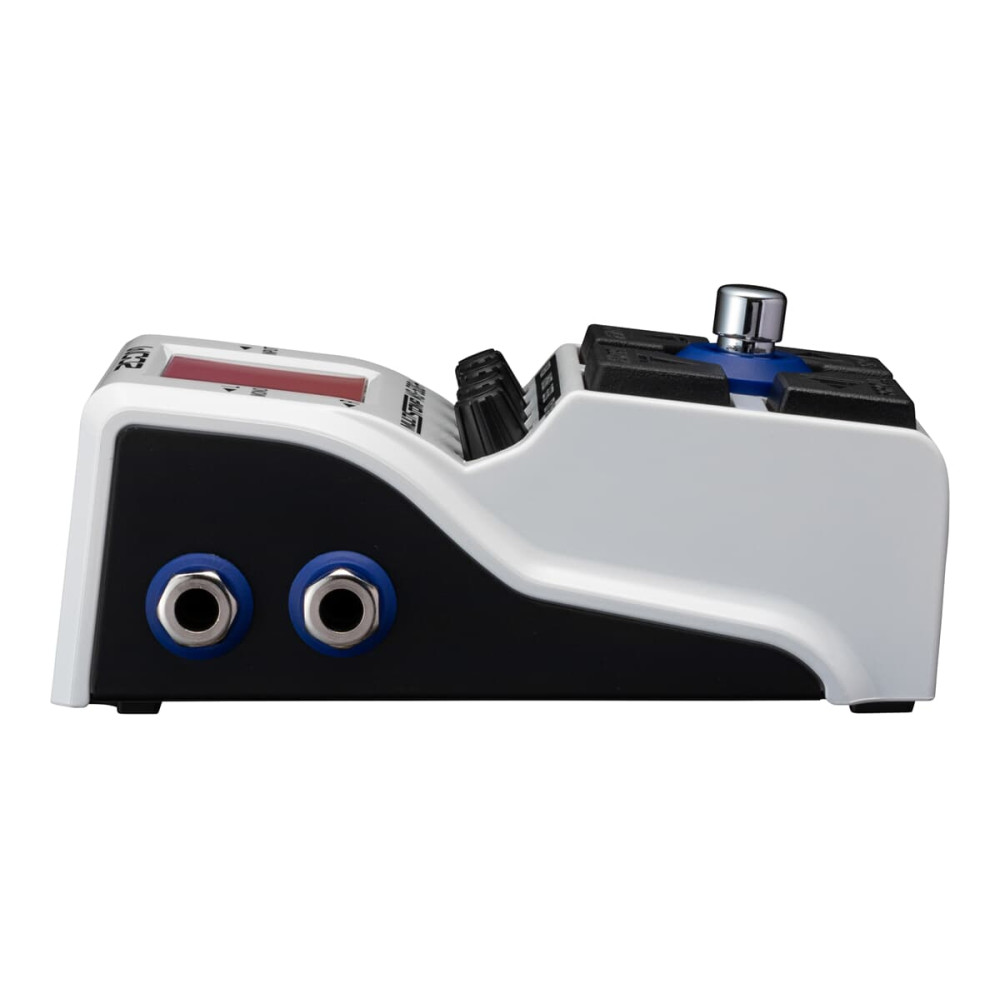

STEREO OUTPUTS
The MS-50G+ includes two ¼" outputs supporting stereo effects like reverbs, choruses, and delays.
PRECISE, ON-BOARD TUNING
The onboard chromatic tuner uses the color backlight to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings as well as open & drop tunings.
POWER UP
The MS-50G+ runs on 2 AA batteries, USB power or AC power.
HANDY GUITAR LAB*
With a growing library of patches and effects, guitarists can continue to expand their sound with the Handy Guitar Lab for MS-50G+ app for iOS.
*Coming Soon to the App Store.
ZOOM’S ORIGINAL EFFECTS AND PREAMPS
PREAMP EXAMPLES
7 HEAVEN DRIVE
Combines a very tight low end with expanded dynamic response, perfect for 7 and 8 string guitars.
VELVET DRIVE
Provides a smooth character that balances the dynamic response between the wound and plain strings, enabling you to play both lead and rhythm.
KRAMPUS DRIVE
Combines the brightness of an 80's British preamp, with the solid low range of a modern high gain amp.
EFFECTS EXAMPLES
SWELLVIBE
SwellVibe, unlike any standard vibrato that starts modulating the signal from the start, applies pitch modulation with a time lag affecting only the sustain of your sound. It inspires unconventional ways for playing ambient pads.
GEMINOS
Geminos is a real-time doubling effect that adds thickness and width by triple overdubbing the original dry signal. This reproduces a random organic texture when playing chords and powerful sustain for solos.
LOOPROLL
This effect allows you to use the footswitch to sample and hold what you play.
Technical Specifications
Maximum number of
simultaneous effects
6 effects
User patch memories
100
Sampling frequency
44.1 kHz
A/D conversion
24-bit 128× oversampling
D/A conversion
24-bit 128× oversampling
Signal processing
32-bit
Frequency response
20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load)
Display
160×128 dot-matrix LCD
Input
INPUT
Standard mono phone jack
Rated input level: −20 dBu
Input impedance (line): 470 kΩ
Outputs
L/R
Standard mono phone jacks
Maximum output level: +7.2 dBu (when output
impedance 10 kΩ or higher)
Input S/N
122 dB
Noise floor (residual noise)
L/R
–100 dBu
Power
AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
2 AA batteries (alkaline, lithium or rechargeable NiMH
batteries)
Estimated operation times
•These values are
Alkaline batteries: about 7 hours
using batteries
approximate.
NiMH batteries (1900 mAh): about 6.5 hours
•Battery operation
Lithium batteries: about 14 hours
times were determined
using in-house testing
methods. They will vary
greatly according to use
conditions.
USB
Port: USB 2.0 Type-C/Supported cable type: Type-C
Handy Guitar Lab: USB1.1 Full Speed
•Use a USB cable that supports data transfer. USB bus
