UV70P
PIA/JEM/UV
Premium Fret Edge Treatment
Premium Fret Edge Treatment offer super smooth,comfortable performance.
Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.
Neck Dimensions
Scale : 648mm
Width at NUT (a): 48mm
Width at 24F (b): 68mm
Thickness at 1F (c): 19mm
Thickness at 12F (d): 21mm
Radius : 400mmR

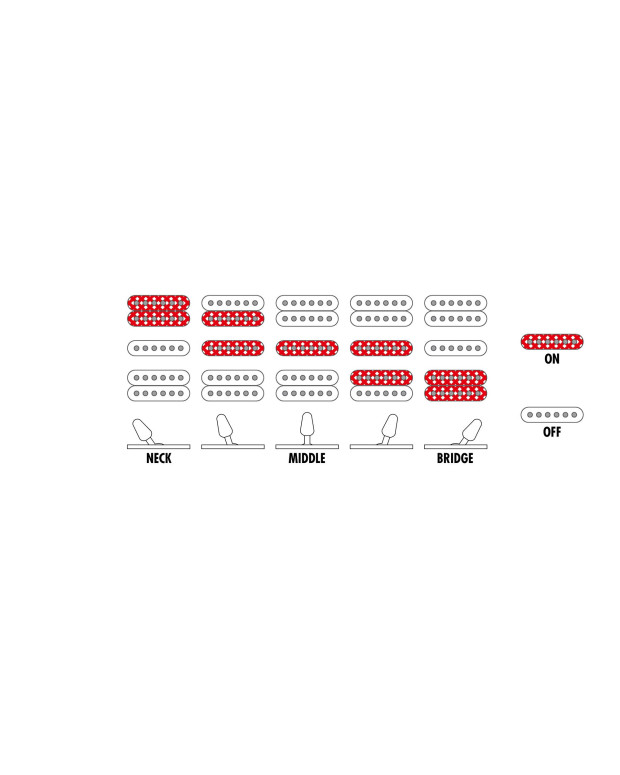

Switching System
When the pickup selector switch is in neck position, the neck humbucker is selected.
When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected.
When the switch is in center position, the center pickup is selected.
When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected.
When the switch is in bridge position, the bridge humbucker is selected.
Controls
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body.
Closest to the neck is the five-way pickup selector switch.
Closer to the input jack is the tone knob.
The volume knob is located right above the five-way pickup selector switch.
