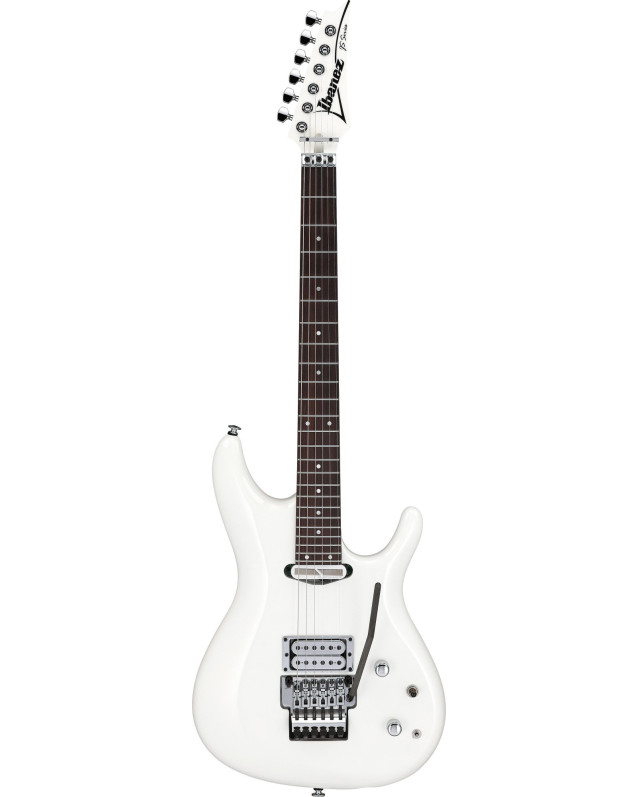

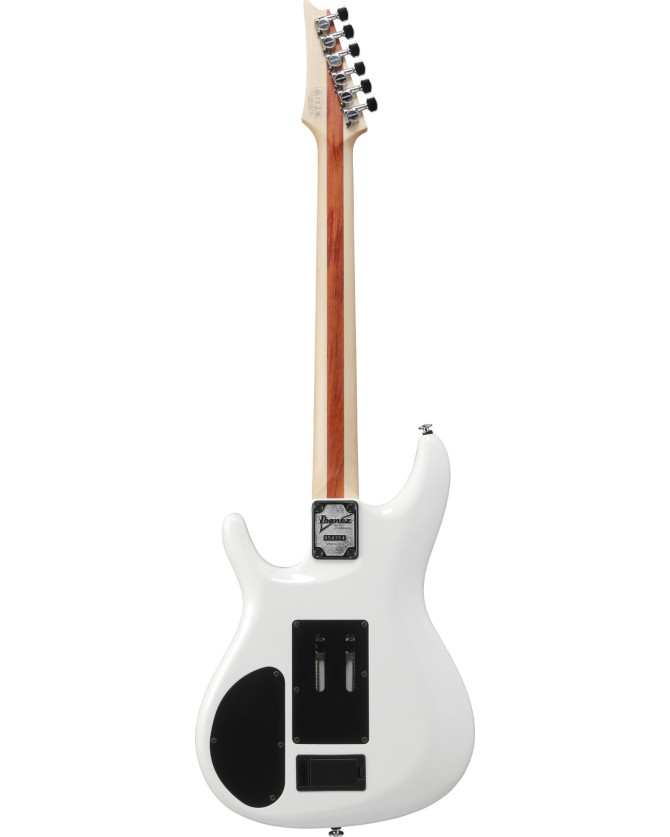

JS2480
JS
Made in Japan

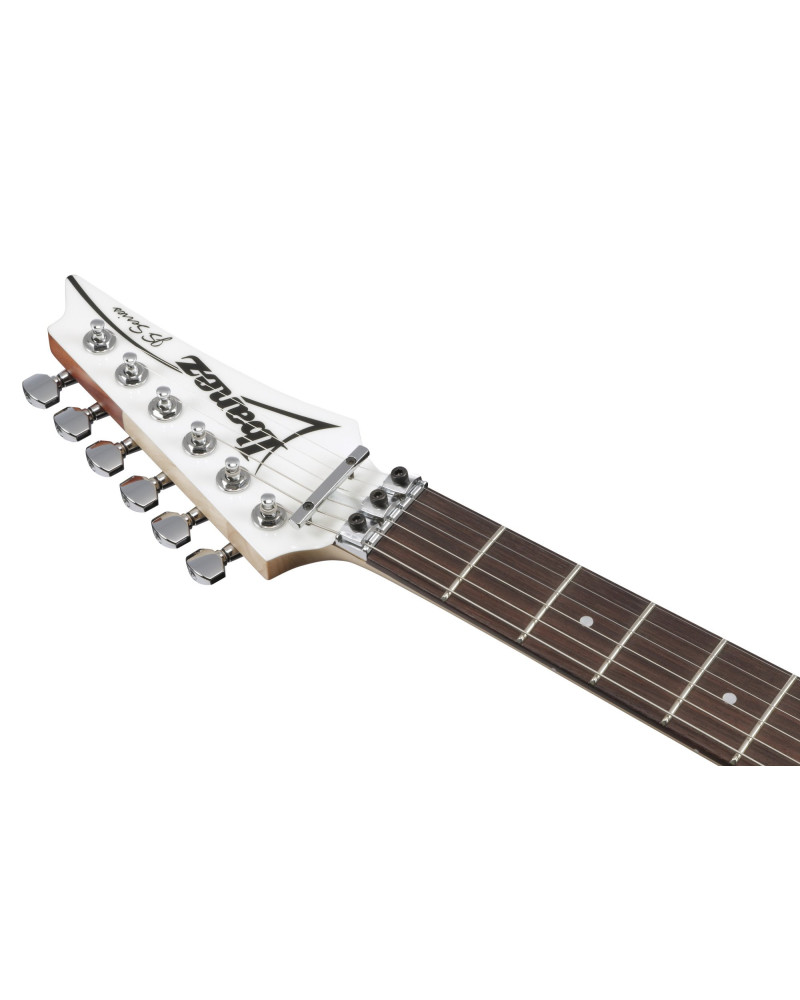

JS 3pc Maple/Bubinga neck
JS features Maple/Bubinga neck. The Bubinga stripe provides stability and longer sustain.
24 Frets
High-pass Filter
A high pass filter on volume pots maintains highs at low volumes.
JS/Edge Tremolo
The legendary, original Edge tremolo bridge is back, always Joe's favorite in feel and tone.
DiMarzio® Satchur8™ pickup
Newly developed DiMarzio® Satchur8™ pickup fully supports Joe's versatile playing style and massive sound.
3 way Sustainiac mode selector
Normal: Sustains the fundamental Mix: Sustains the fundamental and overtone Harmonic: Sustains overtone

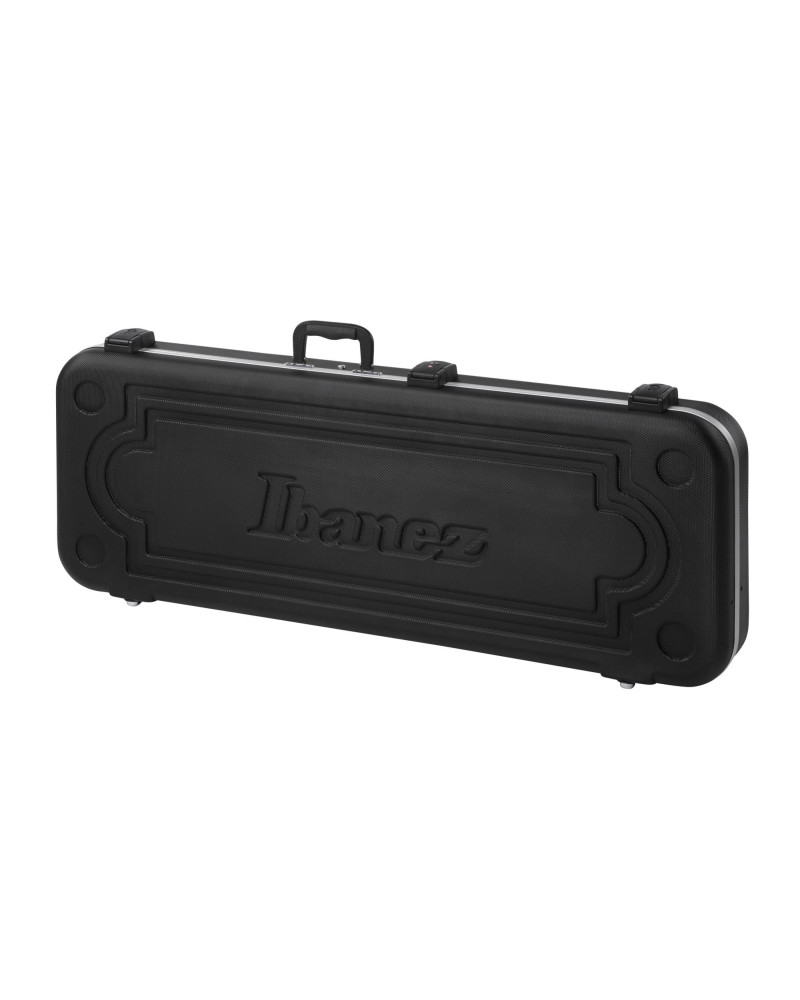

Hardshell case included
Neck Dimensions
Scale : 648mm//25.5"
Width at NUT (a): 42.8mm
Width at 21F (b): 56.4mm
Thickness at 1F (c): 20mm
Thickness at 12F (d): 22.3mm
Radius : 250mmR

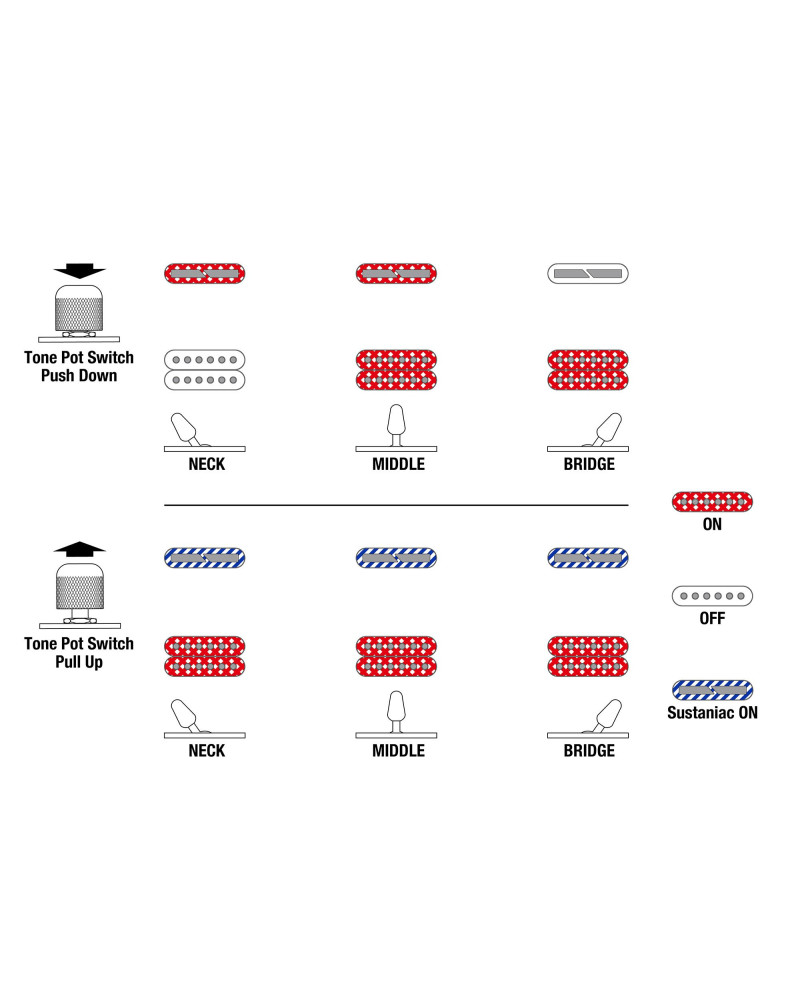

Switching System
When the tone knob is pulled up, the Susutainiac is on.
When the tone knob is down, the Susutainiac is off.
When the Sustainiac is off and the pickup selector switch is in neck position, the neck pickup is selected.
When the switch is in center position, both the neck pickup and the bridge pickups are selected.
When the switch is in bridge position, the bridge pickup is selected.
When the Sustainiac is activated, whichever position the switch is in, the neck and bridge pickups are selected and the Sustainiac is affecting the sound of the neck pickup.

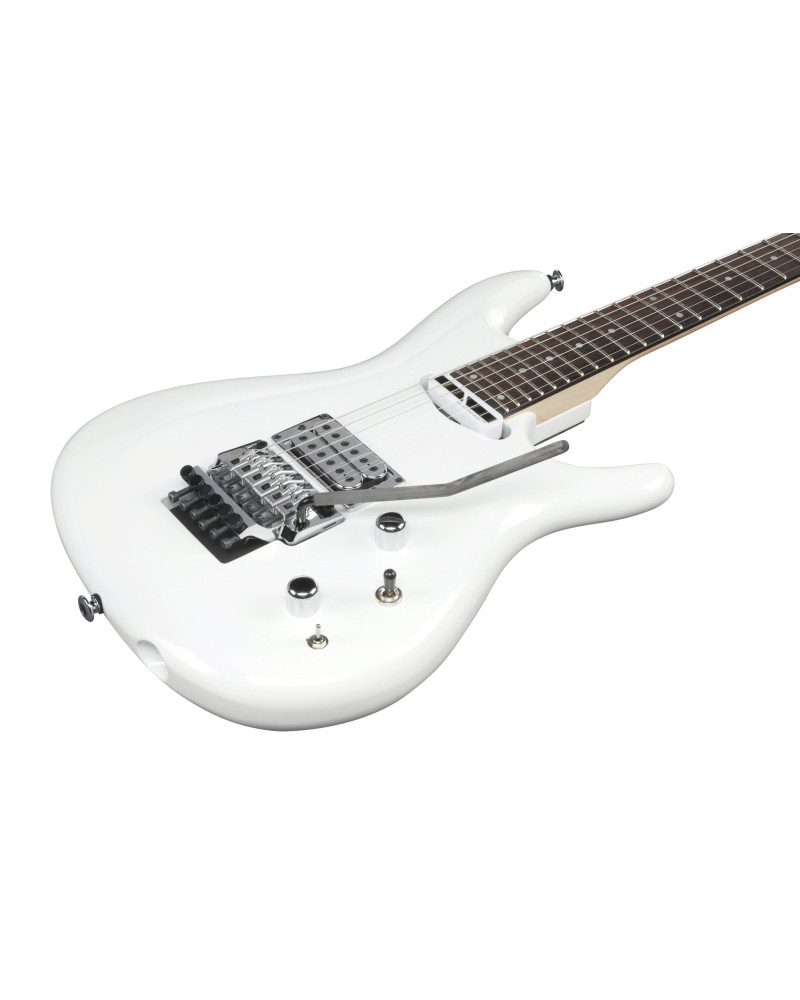

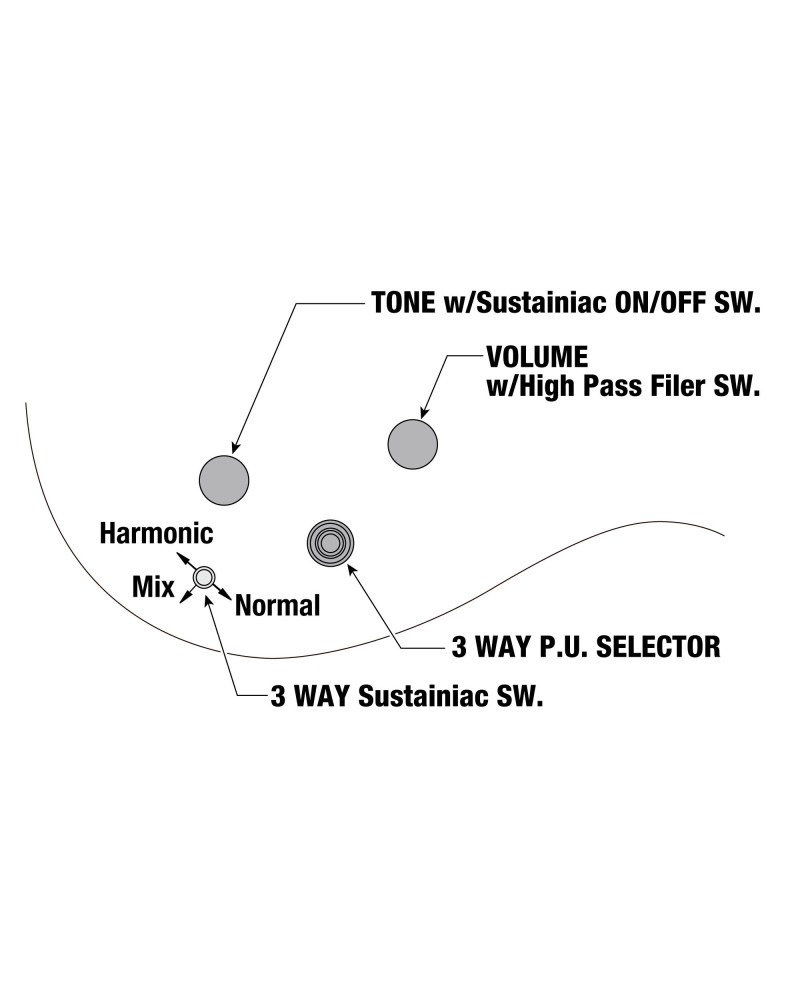

Controls
With the guitar held in the playing position, there are two switches along the lower edge of the body.
The switch closest to the knee cutout is the three-way pickup selector switch, and the switch closest to the end of the body is the three way sustainicac switch.
When the sustainiac switch is in neck position, the sustainiac is in normal mode, when the switch is in center position, the susutainiac is in mix mode, and when the switch is in bridge position, the sustainiac is in harmonic mode.
There are two knobs towards the center of the guitar.
The knob closest to the end of the body is the tone knob, and the knob closer to the neck is the volume knob.
The tone knob also functions as a sustainiac on/off switch, while the volume knob also works as a high pass filter switch.
They are both engaged by pulling up on the knob.
